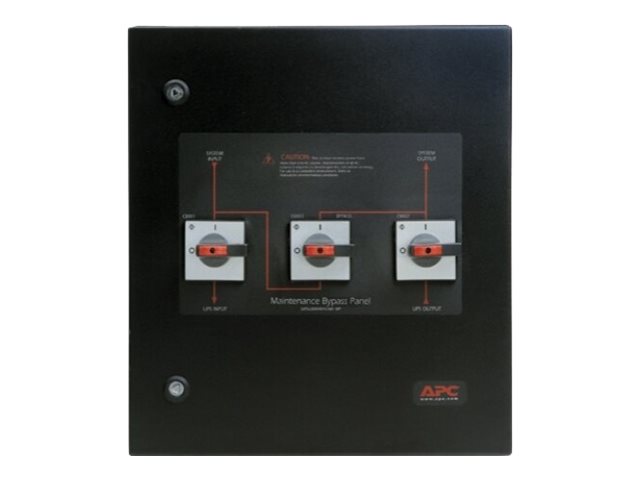

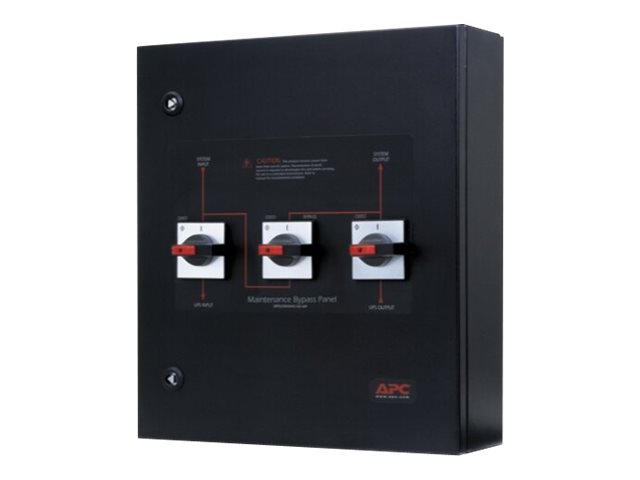

SMART-UPS VT MNT BYPASS PANEL30-40KVA 400V WALLMOUNT


MSRP$1,365.00
$1,008.00
SMART-UPS VT MNT BYPASS PANEL30-40KVA 400V WALLMOUNT

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
SMART-UPS VT MNT BYPASS PANEL30-40KVA 400V WALLMOUNT
  Additional Details
Price: $1,008.00
MSRP: $1,365.00
Mfr Part #: SBPSU30K40HC1M1-WP
SHI Part #: 15924539
Category: Power adapters or inverters
UNSPSC: 39121006
Manufacturer: APC
Product Type: Hardware
Product Line: APC by Schneider Electric
General Information
CategoryPower adapters or inverters
DescriptionSMART-UPS VT MNT BYPASS PANEL30-40KVA 400V WALLMOUNT
ManufacturerAPC
MSRP$1,365.00
UNSPSC39121006
Main Specifications
Dimensions & Weight / Depth12.5 cm
Dimensions & Weight / Height46 cm
Dimensions & Weight / Weight11 kg
Dimensions & Weight / Width40 cm
General / SubcategoryPower converters, splitters and accessories
Header / BrandAPC
Miscellaneous / Product ColorBlack
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Output Connector Qty2
Power Device / Voltage RequiredAC 400 V
Product TypeBypass switch
Service & Support / Type1-year warranty
Compatibility Information
Designed ForAPC Smart-UPS VT 30kVA with 3 Battery Modules Expandable to 4, 30kVA with 4 Battery Modules, 40kVA with 4 Battery Modules
Dimensions & Weight
Depth12.5 cm
Height46 cm
Weight11 kg
Width40 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature40 °C
Min Operating Temperature0 °C
General
ColorBlack
Device TypeBypass switch - external
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Miscellaneous
FeaturesWall mountable
Power Device
Frequency Required50/60 Hz
Input VoltageAC 400 V
Input Wiring3-phase
Output VoltageAC 400 V
Power Output Connectors Details
  • 1 x hardwire 4-wire (3PH + G)
  • 1 x hardwire 5-wire (3PH + N + G)
