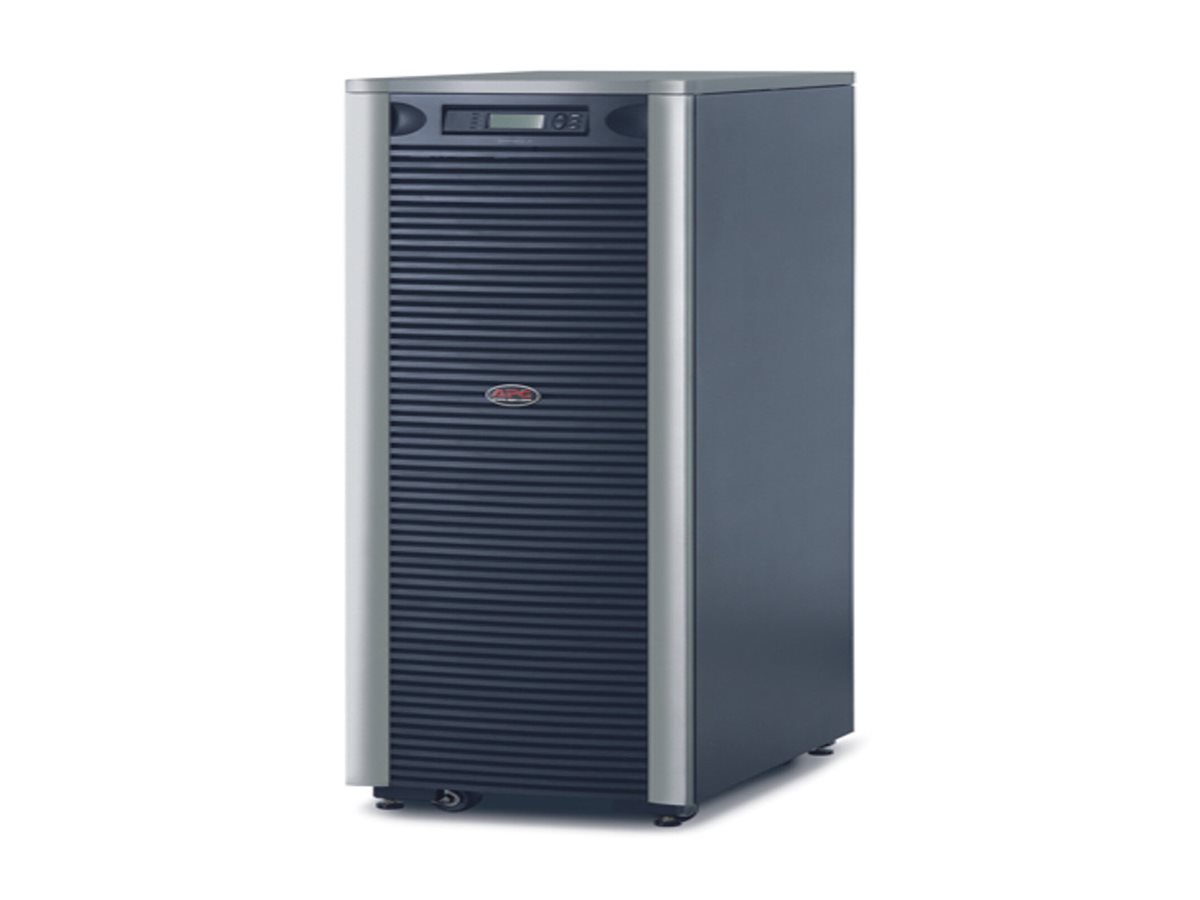

SYMMETRA LX 12KVA SCALABLE TO16KVA N+1 EXT RUN TWR 220/230/240V
MSRP$34,815.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
SYMMETRA LX 12KVA SCALABLE TO16KVA N+1 EXT RUN TWR 220/230/240V
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $34,815.00 |
| Mfr Part #: | SYA12K16IXR |
| SHI Part #: | 14690295 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
Audio/Video Cables
- 2 m
- for P/N: SRV1KA-TW, SRV1KI-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW
MSRP $40.00
$32.00
- 4.57 m
- for P/N: SRV1KA-TW, SRV1KI-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW
MSRP $60.00
$49.00
Power Adapters
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | SYMMETRA LX 12KVA SCALABLE TO16KVA N+1 EXT RUN TWR 220/230/240V |
| Manufacturer | APC by Schneider Electric |
| MSRP | $34,815.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 73 cm |
| Dimensions & Weight / Height | 152 cm |
| Dimensions & Weight / Weight | 489 kg |
| Dimensions & Weight / Width | 48 cm |
| General / Subcategory | UPS |
| Header / Brand | APC |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface | Ethernet 10/100 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Power Capacity (VA) | 12000 VA |
| Power Device / Voltage Required | AC 230/400 V |
| Product Type | Power array |
| Service & Support / Type | 2-year warranty |
| Battery | |
| Quantity | 13 (installed) / 13 (supported) |
| Run Time (Up To) | 35.4 min at full load |
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 73 cm |
| Height | 152 cm |
| Weight | 489 kg |
| Width | 48 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 SmartSlot |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
| General | |
| Battery Enclosure Type | Plug-in module |
| Color | Black, silver |
| Device Type | Power array - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | C-Tick, GOST, EN 60950, VDE, IEC 60950, EN55024, EN55022 Class A, EN 50091-2 |

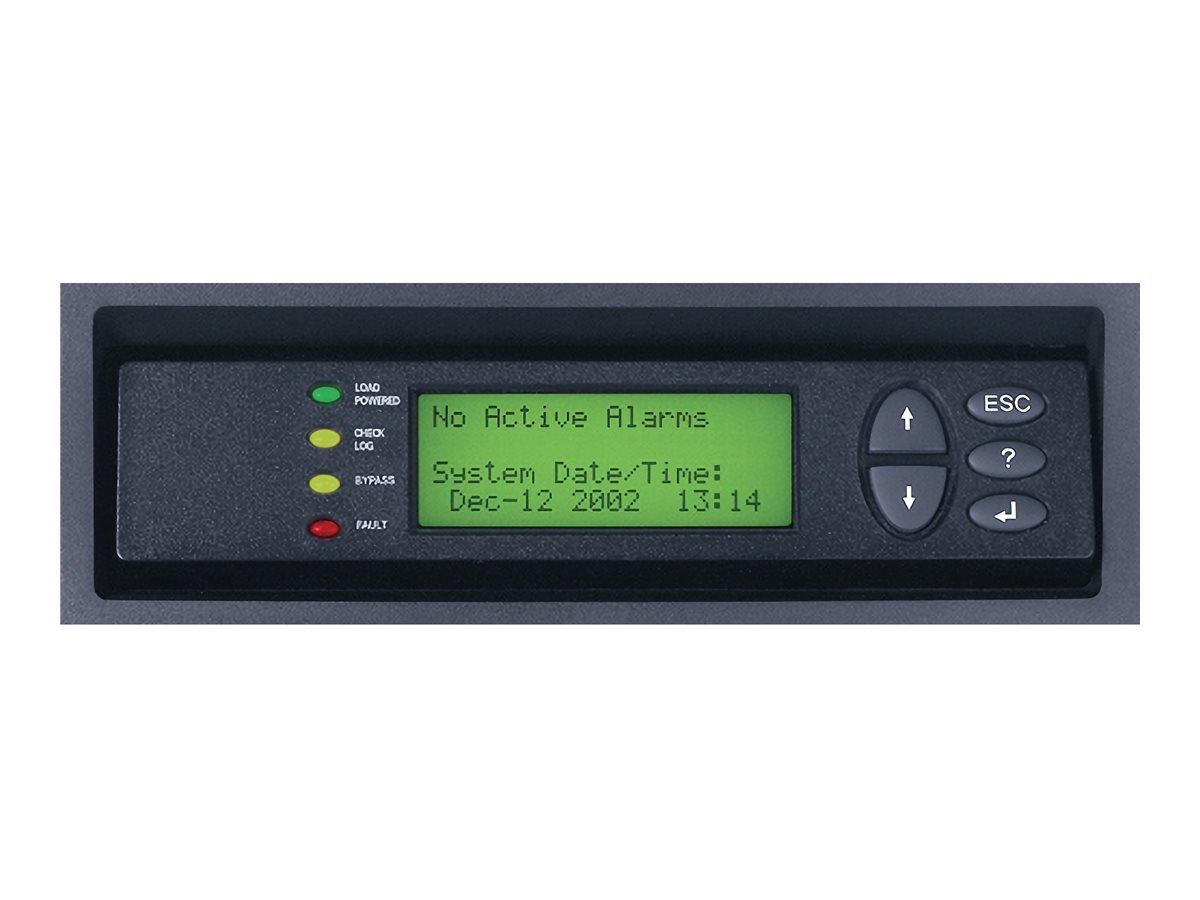

| Features | Emergency power off, LCD display, audible alarm |
| Networking | |
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP |
| Power Device | |
| Frequency Provided | 47 - 63 Hz |
| Frequency Required | 45 - 65 Hz |
| Input Connectors | 2 x hardwire |
| Input Voltage | AC 230/400 V |
| Input Voltage Range | AC 155/276 - 290/480 V |
| Output Voltage | AC 230 V ± 5% - 47 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 12000 VA |
| Supported Battery Technology | Lead acid |
