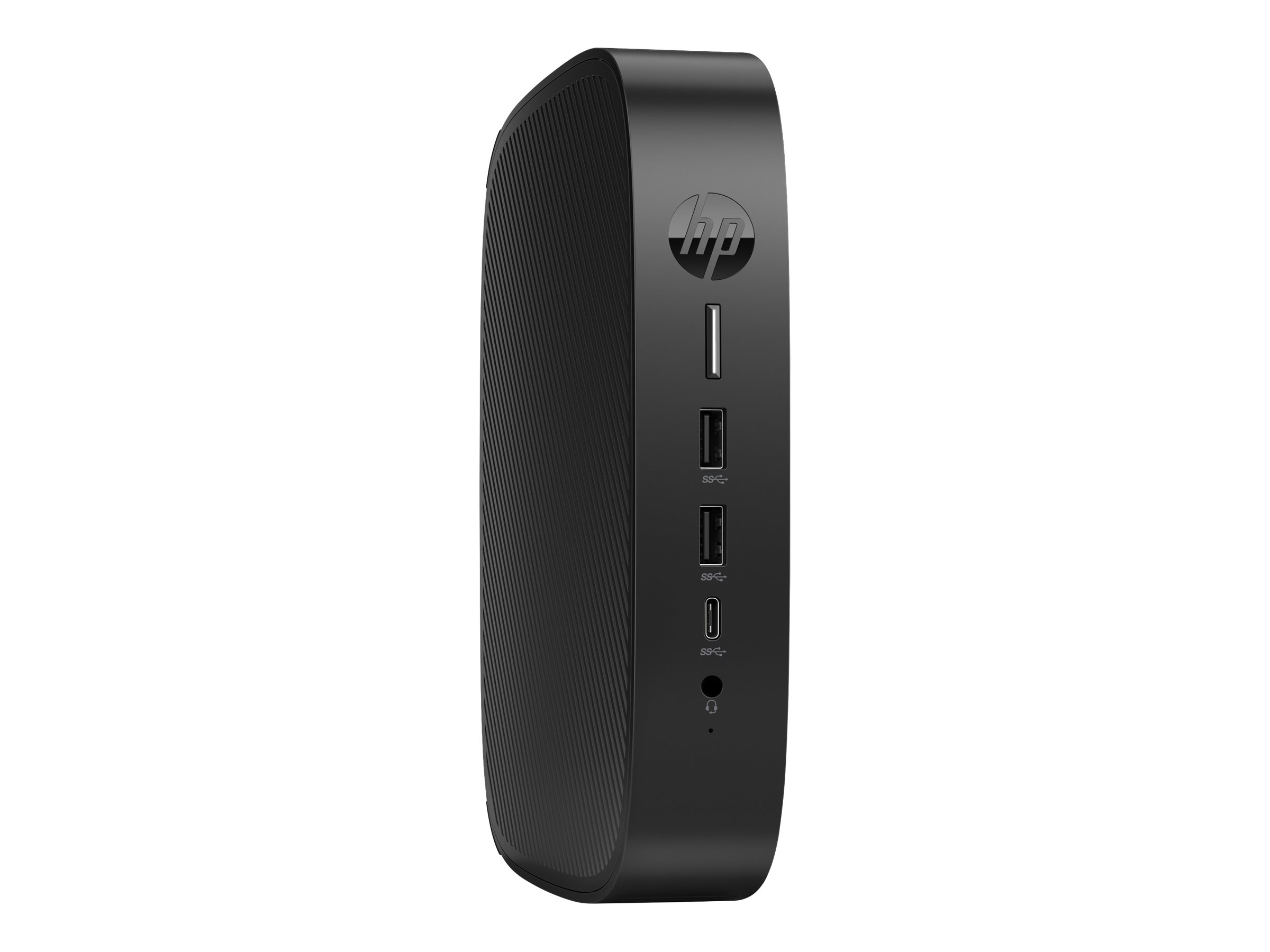

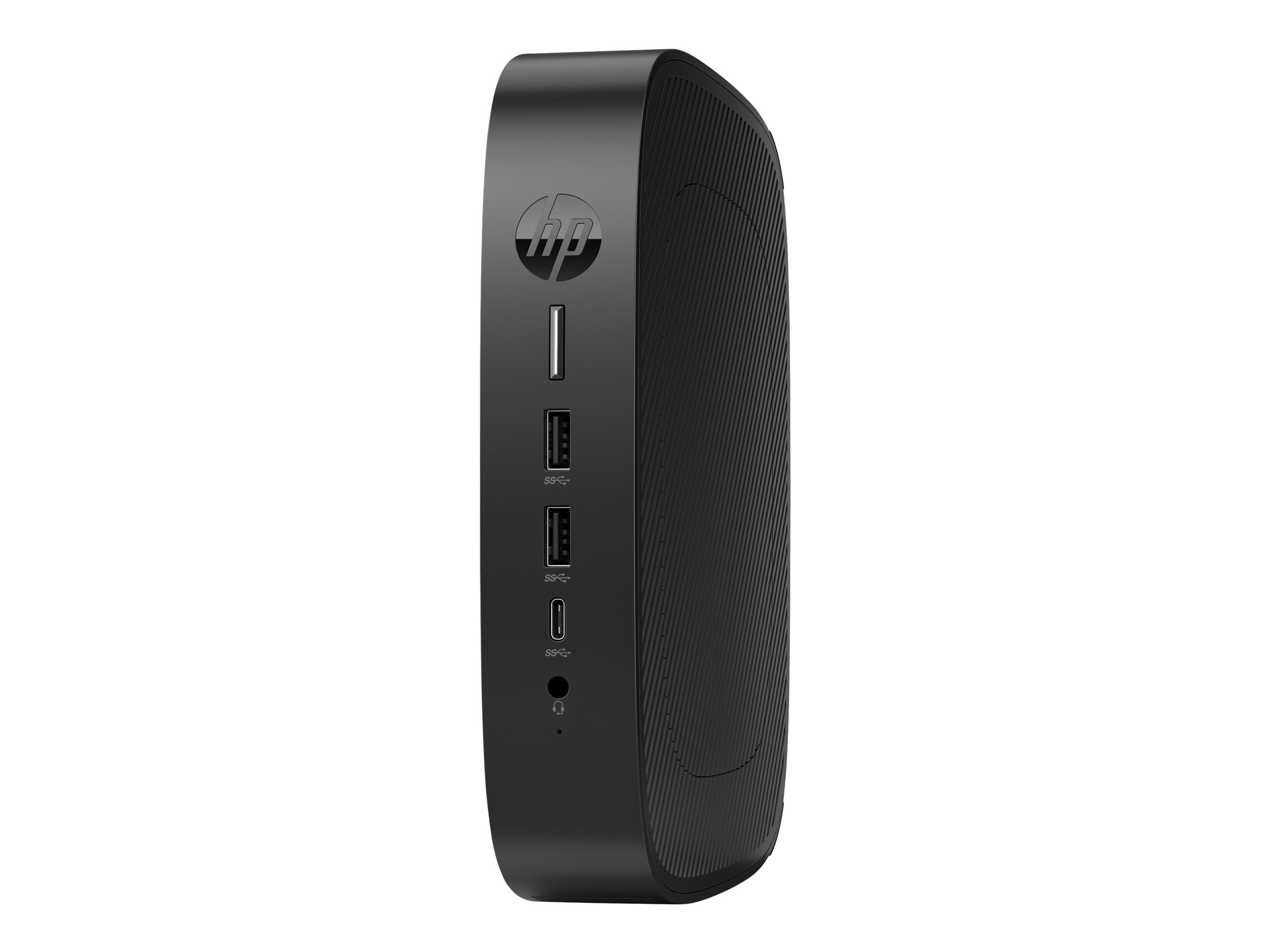

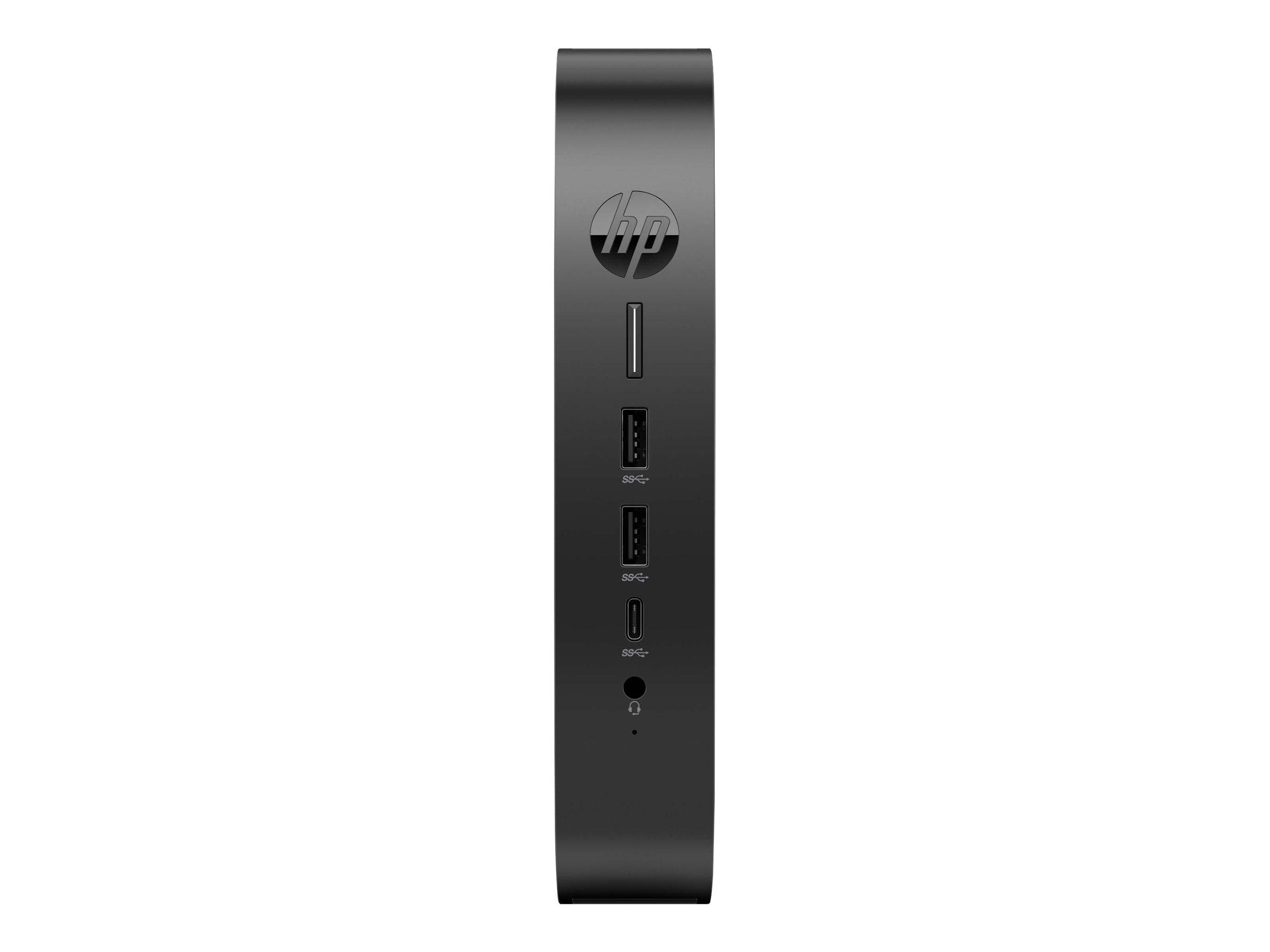

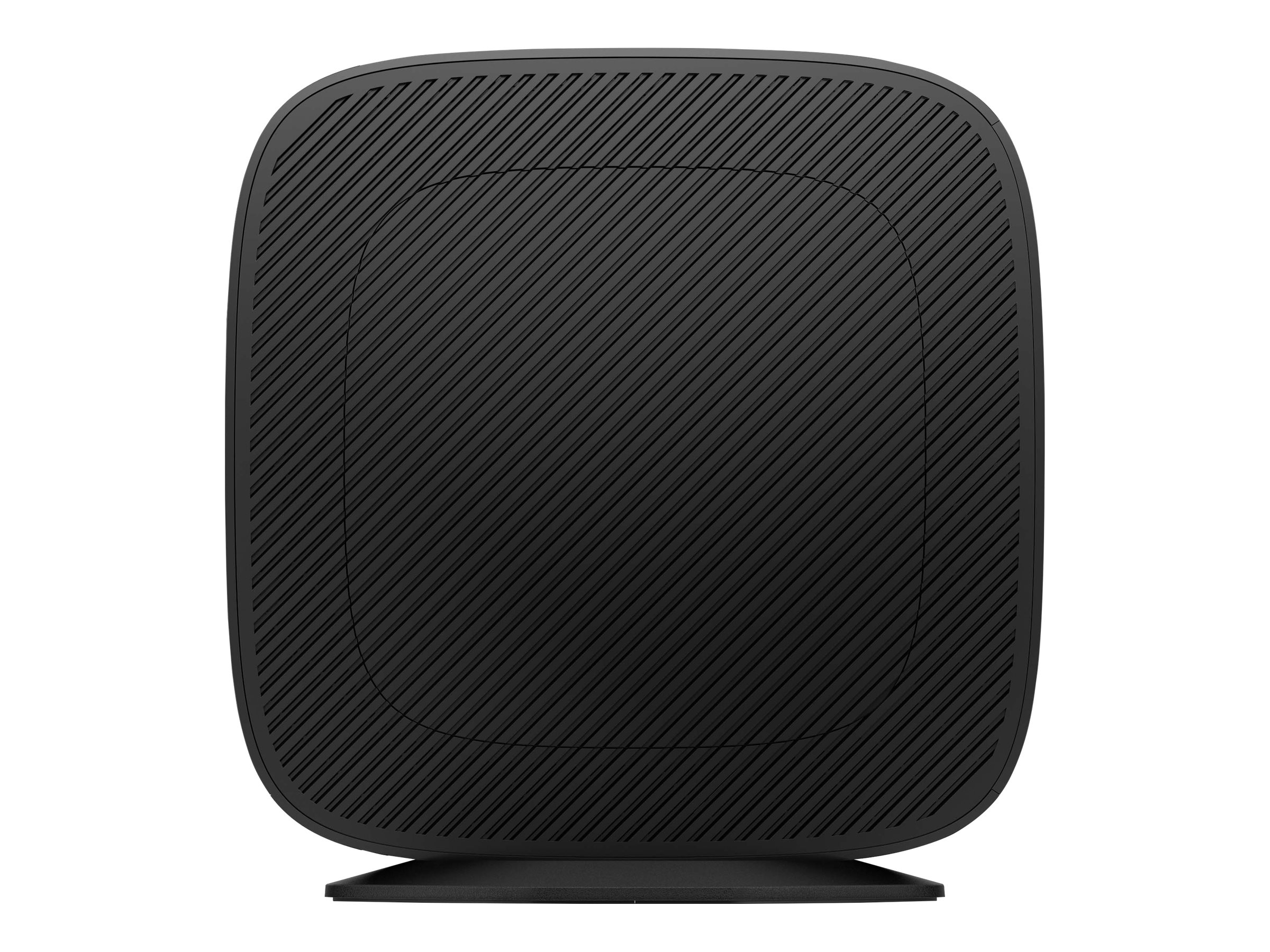

HP Elite t655 - Thin client


MSRP$710.00
Login for Price
HP Elite t655 - Thin client

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • SFF
  • 1 x Ryzen Embedded R2314 / up to 3.5 GHz
  • RAM 8 GB
  • flash 64 GB
  • eMMC
HP Elite t655 - Thin client
  • SFF
  • 1 x Ryzen Embedded R2314 / up to 3.5 GHz
  • RAM 8 GB
  • flash 64 GB
  • eMMC
  • Radeon Graphics
  • Gigabit Ethernet, Bluetooth 5.2
  • 802.11a/b/g/n/ac/ax, Bluetooth 5.2
  • Win 10 IoT Enterprise
  • monitor: none
  • keyboard: US
  • Smart Buy
  • with HP 3 years Offsite Desktop Hardware Support
  Additional Details
MSRP: $710.00
Mfr Part #: 9B4E0UT#ABA
SHI Part #: 47007002
Category: Thin client or diskless workstations
UNSPSC: 43211506
Manufacturer: HP, Inc.
Product Type: Hardware
General Information
CategoryThin client or diskless workstations
DescriptionHP Elite t655 - Thin client - SFF - 1 x Ryzen Embedded R2314 / up to 3.5 GHz - RAM 8 GB - flash 64 GB - eMMC - Radeon Graphics - Gigabit Ethernet, Bluetooth 5.2 - 802.11a/b/g/n/ac/ax, Bluetooth 5.2 - Win 10 IoT Enterprise - monitor: none - keyboard: US - Smart Buy - with HP 3 years Offsite Desktop Hardware Support
ManufacturerHP, Inc.
MSRP$710.00
UNSPSC43211506
Main Specifications
Chassis / Form FactorSmall form factor
Dimensions & Weight / Depth20 cm
Dimensions & Weight / Height20 cm
Dimensions & Weight / Weight1.174 kg
Dimensions & Weight / Width3.5 cm
Display / TypeNone.
Hard Drive / Capacity64 GB
Header / BrandHP
Header / Country KitsUnited States
Header / LocalizationEnglish
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • 802.11ax
  • Bluetooth 5.2
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax
  • Bluetooth 5.2
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 10 IoT Enterprise
Packaged Quantity1
Processor / Clock Speed2.1 GHz
Processor / ManufacturerAMD
Processor / Number of CoresQuad-Core
Processor / Processor NumberR2314
Processor / TypeRyzen Embedded
RAM / Form FactorSO-DIMM 260-pin
RAM / Memory Speed2667 MHz
RAM / TechnologyDDR4 SDRAM
Service & Support / Type3-year warranty
System / Hard Drive Capacity64 GB
System / TypeThin client
Video Output / Graphics ProcessorAMD Radeon Graphics
Audio Output
Sound Output ModeStereo
Dimensions & Weight
Depth20 cm
Dimensions & Weight Details
  • 3.5 cm - 20 cm - 20 cm - 1.174 kg - with stand
  • - 1.12 kg - without stand
Height20 cm
Weight1.174 kg
Width3.5 cm
Dimensions & Weight (Shipping)
Shipping Weight2.106 kg
Environmental Parameters
Humidity Range Operating10 - 90% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature10 °C
Expansion / Connectivity
Interfaces
  • 2 x USB 3.1 Gen 1 (2 front)
  • 3 x USB-C 3.2 Gen 2 (1 front, 2 rear)
  • 1 x audio line-out/line-in - mini-jack (1 front)
  • 3 x DisplayPort 1.2 (3 rear)
  • 2 x USB 3.2 Gen 1 (2 rear)
  • 1 x LAN (Gigabit Ethernet) (1 rear)
  • 1 x audio line-out/headphones (1 rear)
Slots1 (total) / 0 (free) x M.2 Card (for internal storage)
General
Bundled ServicesHP 3 years Offsite Desktop Hardware Support
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
LocalizationLanguage: English / region: United States
Product Form FactorSmall form factor
TypeThin client
Graphics Controller
Graphics ProcessorAMD Radeon Graphics
Max Monitors Supported3
Video InterfacesDisplayPort
Hard Drive
Capacity1 x 64 GB
FeatureseMMC
TypeFlash - M.2
Input Device
TypeMouse, keyboard
Keyboard
InterfaceUSB
Localization & LayoutUS
Manufacturer Warranty
Service & SupportLimited warranty - parts and labor - 3 years
Miscellaneous
Compliant StandardsWEEE, ERP, CECP, RoHS2, SEPA, low halogen, HP GSE
Manufacturer Selling ProgramHP Smart Buy
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately)
VESA Mounting Interface100 x 100 mm, VESA
Monitor
Monitor TypeNone.
Mouse
InterfaceUSB
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.2
Ethernet ControllerRealtek RTL8111EPH-CG
FeaturesDual stream (2x2)
Wireless LAN SupportedYes
Wireless NICRealtek RTL8852BE
Operating System / Software
OS ProvidedWindows 10 IoT Enterprise English
SoftwareHP Easy Tools, HP Device Manager, HP ThinUpdate, HP True Graphics, HP Easy Shell, Microsoft Edge, HP Write Manager, HP Cloud Endpoint Manager
Optical Storage
TypeNo optical drive
Power
Device TypePower adapter
Power Device NameHP Smart AC Adapter
Power Provided45 Watt
Voltage RequiredAC 100-240 V (50/60 Hz)
Processor / Chipset
Clock Speed2.1 GHz
CPUAMD Ryzen Embedded R2314
CPU Qty1
CPU UpgradabilityNot upgradable
Max CPU Qty1
Max Turbo Speed3.5 GHz
Number of CoresQuad-Core
RAM
Configuration Features2 x 4 GB
Effective Memory Speed2667 MHz
Form FactorSO-DIMM 260-pin
Installed Size8 GB / 32 GB (max)
Rated Memory Speed3200 MHz
Slots2 (total) / 0 (empty)
TechnologyDDR4 SDRAM
Sustainability Information
ENERGY STAR CertifiedYes
