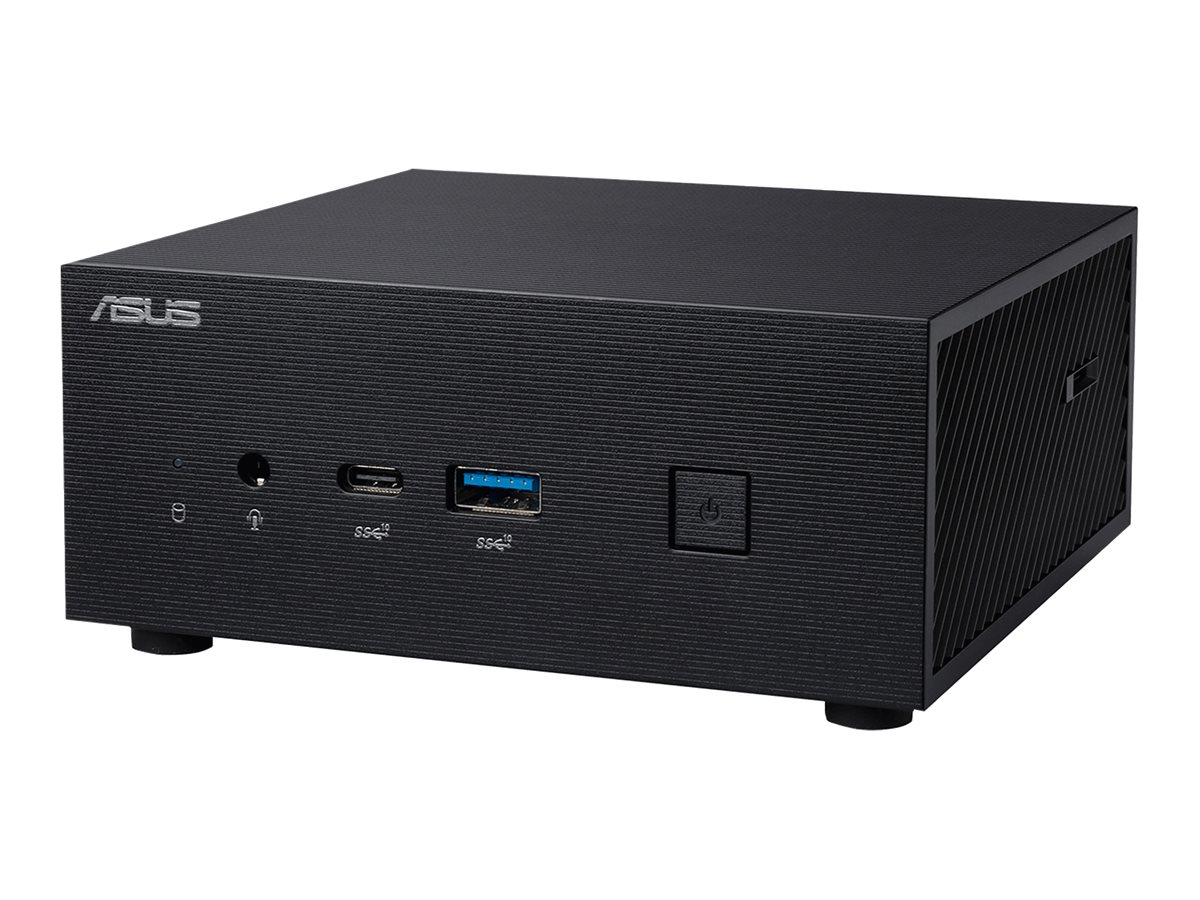

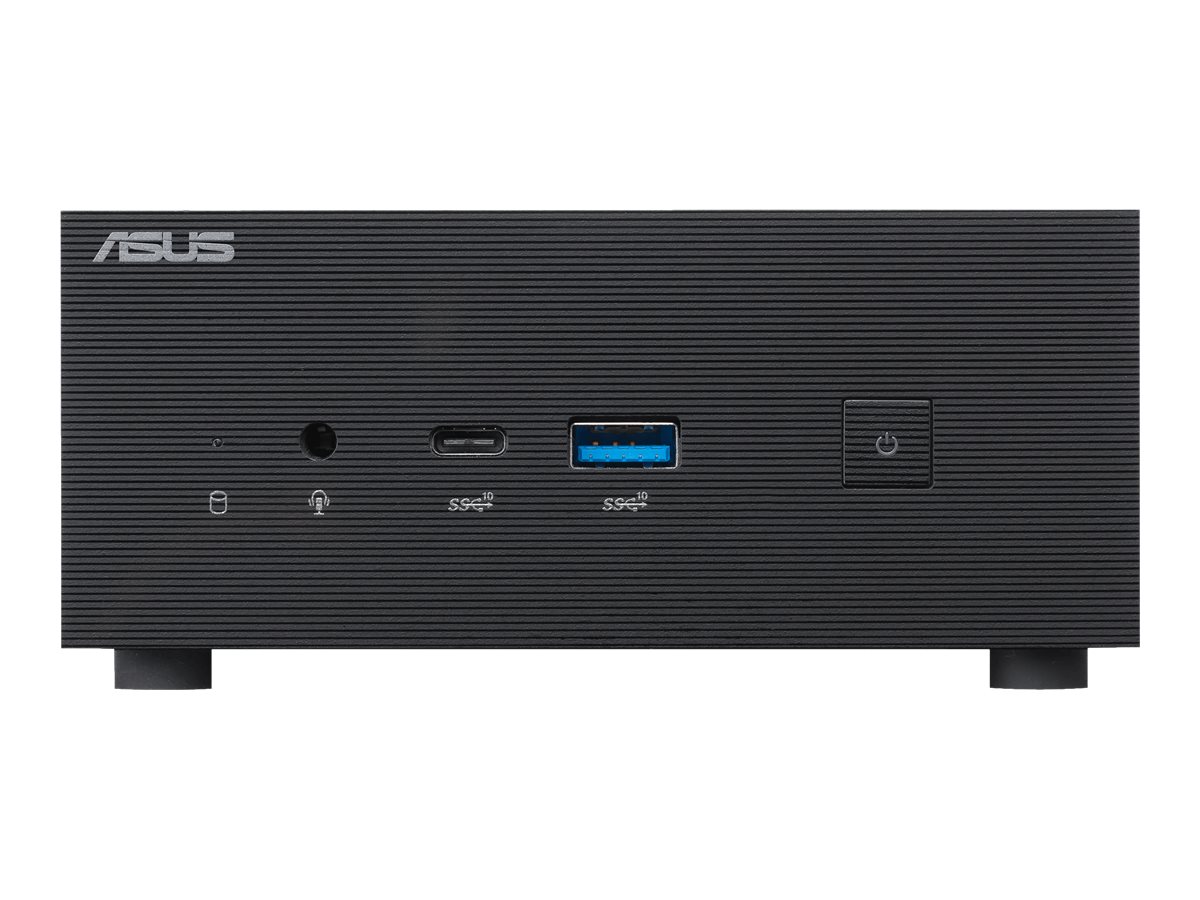

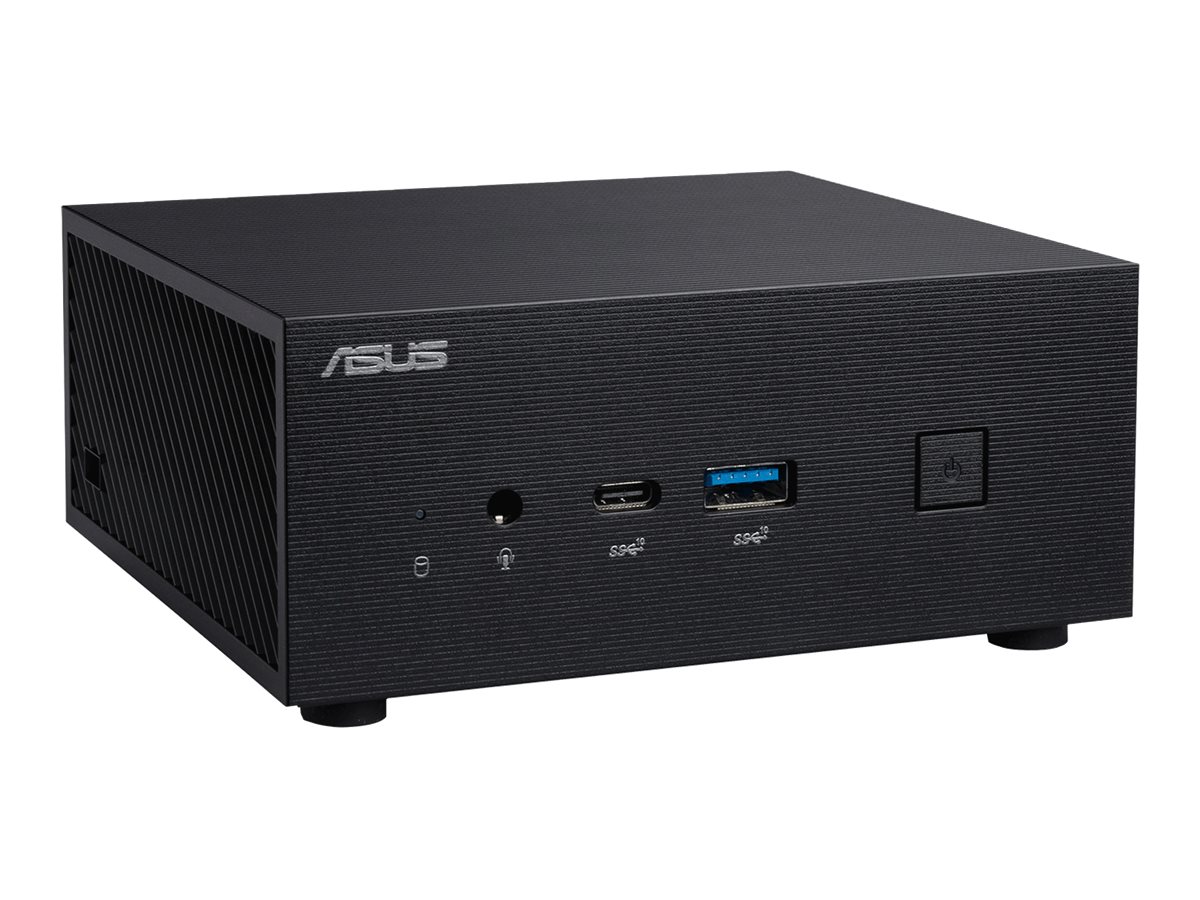

ASUS Mini PC PN63-S1 BB7G000X1TD-NL


$522.00
ASUS Mini PC PN63-S1 BB7G000X1TD-NL

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Barebone
  • ultra compact mini PC
  • 1 x Core i7 1165G7 / 2.8 GHz
  • RAM 0 GB
  • Intel Iris Xe Graphics
ASUS Mini PC PN63-S1 BB7G000X1TD-NL
  • Barebone
  • ultra compact mini PC
  • 1 x Core i7 1165G7 / 2.8 GHz
  • RAM 0 GB
  • Intel Iris Xe Graphics
  • GigE, 2.5 GigE, Bluetooth 5.2, 802.11ax (Wi-Fi 6E)
  • WLAN: Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
  • black
  Additional Details
Price: $522.00
Mfr Part #: PN63-S1-BB7G000X1TD-NL
SHI Part #: 46380607
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: ASUS
Product Type: Hardware
General Information
CategoryDesktop computers
DescriptionASUS Mini PC PN63-S1 BB7G000X1TD-NL - Barebone - ultra compact mini PC - 1 x Core i7 1165G7 / 2.8 GHz - RAM 0 GB - Intel Iris Xe Graphics - GigE, 2.5 GigE, Bluetooth 5.2, 802.11ax (Wi-Fi 6E) - WLAN: Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) - black
ManufacturerASUS
MSRP$499.00
UNSPSC43211507
Main Specifications
Chassis / Form FactorUltra small form factor
Dimensions & Weight / Depth12 cm
Dimensions & Weight / Height5.8 cm
Dimensions & Weight / Weight750 g
Dimensions & Weight / Width13 cm
Display / TypeNone.
Header / BrandASUS
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Bluetooth 5.2
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
  • Bluetooth 5.2
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeNo operating system
Packaged Quantity1
Processor / Clock Speed2.8 GHz
Processor / Generation11
Processor / ManufacturerIntel
Processor / Number of CoresQuad-Core
Processor / Processor NumberI7-1165G7
Processor / TypeCore i7
RAM / Form FactorSO-DIMM 260-pin
RAM / Memory Speed3200 MHz
RAM / TechnologyDDR4 SDRAM
Service & Support / Type3-year warranty
System / Hard Drive Capacity0 GB
System / TypePC barebone
Video Output / Graphics ProcessorIntel Iris Xe Graphics
Cache Memory
Installed Size12 MB
Card Reader
Supported Flash Memory CardsmicroSD, microSDHC, microSDXC
Type3 in 1 card reader
Dimensions & Weight
Depth12 cm
Height5.8 cm
Weight750 g
Width13 cm
Expansion / Connectivity
Bays1 internal 2.5"
Interfaces
  • 1 x HDMI
  • 1 x LAN (2.5Gigabit Ethernet)
  • 1 x DisplayPort 1.4
  • 3 x USB 3.2 Gen 2 (1 front, 2 rear)
  • 1 x audio line-out/headphones/microphone (1 in front)
  • 1 x USB-C 3.2 Gen 2 (1 in front)
  • 1 x Mini DisplayPort 1.2
Slots2 M.2 Card
General
ColorBlack
Product Form FactorUltra compact mini PC
TypePC barebone
Graphics Controller
Graphics ProcessorIntel Iris Xe Graphics
Video InterfacesHDMI, DisplayPort
Hard Drive
TypeNo HDD
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately)

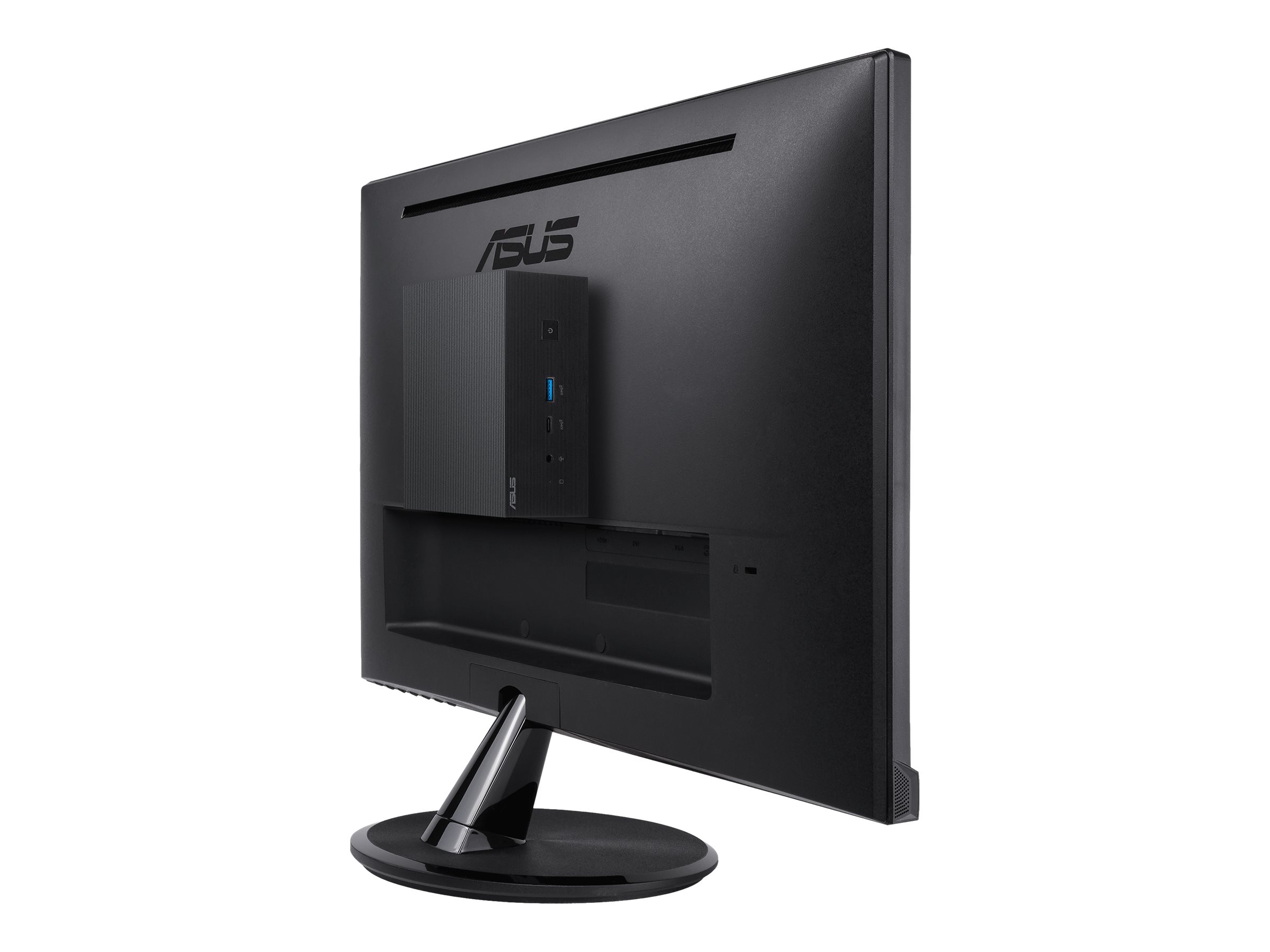

VESA Mounting InterfaceYes
Monitor
Monitor TypeNone.
Networking
Compliant StandardsWi-Fi CERTIFIED 6
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E)
Ethernet ControllerIntel I225-V
Ethernet Ports2.5 Gigabit Ethernet
FeaturesDual stream (2x2)
Wireless LAN SupportedYes
Operating System / Software
OS ProvidedNo operating system
Optical Storage
TypeNo optical drive
Power
Device TypePower adapter
Power Provided90 Watt
Processor / Chipset
Clock Speed2.8 GHz
CPUIntel Core i7 (11th Gen) 1165G7
CPU Qty1
Max CPU Qty1
Max Turbo Speed4.7 GHz
Number of CoresQuad-Core
RAM
Effective Memory Speed3200 MHz
Form FactorSO-DIMM 260-pin
Installed Size0 GB / 32 GB (max)
Rated Memory Speed3200 MHz
Slots2 (total) / 2 (empty)
TechnologyDDR4 SDRAM
Storage Controller
Controller Interface TypeSATA 6Gb/s
Type1 x SATA
Sustainability Information
ENERGY STAR CertifiedYes
EPEAT CompliantEPEAT Silver
