ASUS Mini PC PN63-S1 SYS7H15PXFD


$829.00
ASUS Mini PC PN63-S1 SYS7H15PXFD

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Barebone
  • ultra compact mini PC
  • 1 x Core i7 11370H / 3.3 GHz
  • RAM 0 GB
  • Iris Xe Graphics
ASUS Mini PC PN63-S1 SYS7H15PXFD
  • Barebone
  • ultra compact mini PC
  • 1 x Core i7 11370H / 3.3 GHz
  • RAM 0 GB
  • Iris Xe Graphics
  • GigE, 2.5 GigE
  • WLAN: Bluetooth 5.0, 802.11a/b/g/n/ac/ax
  • black
  Additional Details
Price: $829.00
Mfr Part #: PN63-S1-SYS7H15PXFD
SHI Part #: 44833986
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: ASUS
Product Type: Hardware
General Information
CategoryDesktop computers
DescriptionASUS Mini PC PN63-S1 SYS7H15PXFD - Barebone - ultra compact mini PC - 1 x Core i7 11370H / 3.3 GHz - RAM 0 GB - Iris Xe Graphics - GigE, 2.5 GigE - WLAN: Bluetooth 5.0, 802.11a/b/g/n/ac/ax - black
ManufacturerASUS
MSRP$799.00
UNSPSC43211507
Main Specifications
Chassis / Form FactorUltra small form factor
Dimensions & Weight / Depth12 cm
Dimensions & Weight / Height5.8 cm
Dimensions & Weight / Weight750 g
Dimensions & Weight / Width13 cm
Display / TypeNone.
Header / BrandASUS
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Bluetooth 5.0
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax
  • Bluetooth 5.0
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeNo operating system
Packaged Quantity1
Processor / Clock Speed3.3 GHz
Processor / Generation11
Processor / ManufacturerIntel
Processor / Number of CoresQuad-Core
Processor / Processor NumberI7-11370H
Processor / TypeCore i7
RAM / Form FactorSO-DIMM 260-pin
RAM / TechnologyDDR4 SDRAM
Service & Support / Type1-year warranty
System / Hard Drive Capacity0 GB
System / TypePC barebone
Video Output / Graphics ProcessorIntel Iris Xe Graphics
Card Reader
Supported Flash Memory CardsmicroSD, microSDHC, microSDXC
Type3 in 1 card reader
Dimensions & Weight
Depth12 cm
Height5.8 cm
Weight750 g
Width13 cm
Environmental Standards
ENERGY STAR CertifiedYes
Expansion / Connectivity
Bays1 (total) / 1 (free) x internal 2.5"

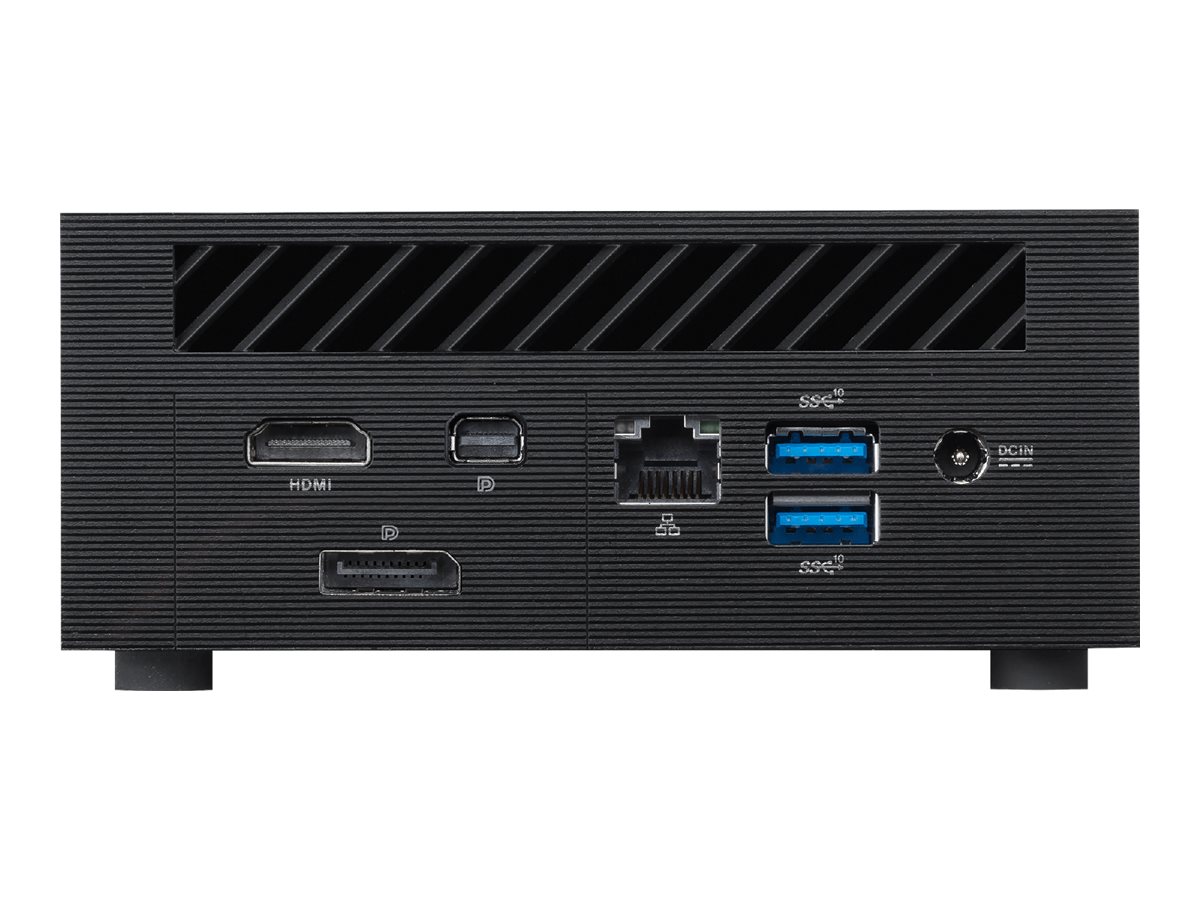

Interfaces
  • HDMI
  • 1 x LAN (2.5Gigabit Ethernet)
  • 1 x DisplayPort 1.4
  • 3 x USB 3.2 Gen 2 (1 front, 2 rear)
  • 1 x audio line-out/headphones/microphone (1 in front)
  • 1 x USB-C 3.2 Gen 2 (1 in front)
  • 1 x Mini DisplayPort 1.2
Slots2 (total) / 2 (free) x M.2 Card
General
ColorBlack
Product Form FactorUltra compact mini PC
TypePC barebone
Graphics Controller
Graphics ProcessorIntel Iris Xe Graphics
Video InterfacesHDMI, DisplayPort
Hard Drive
TypeNo HDD
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Miscellaneous
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately)

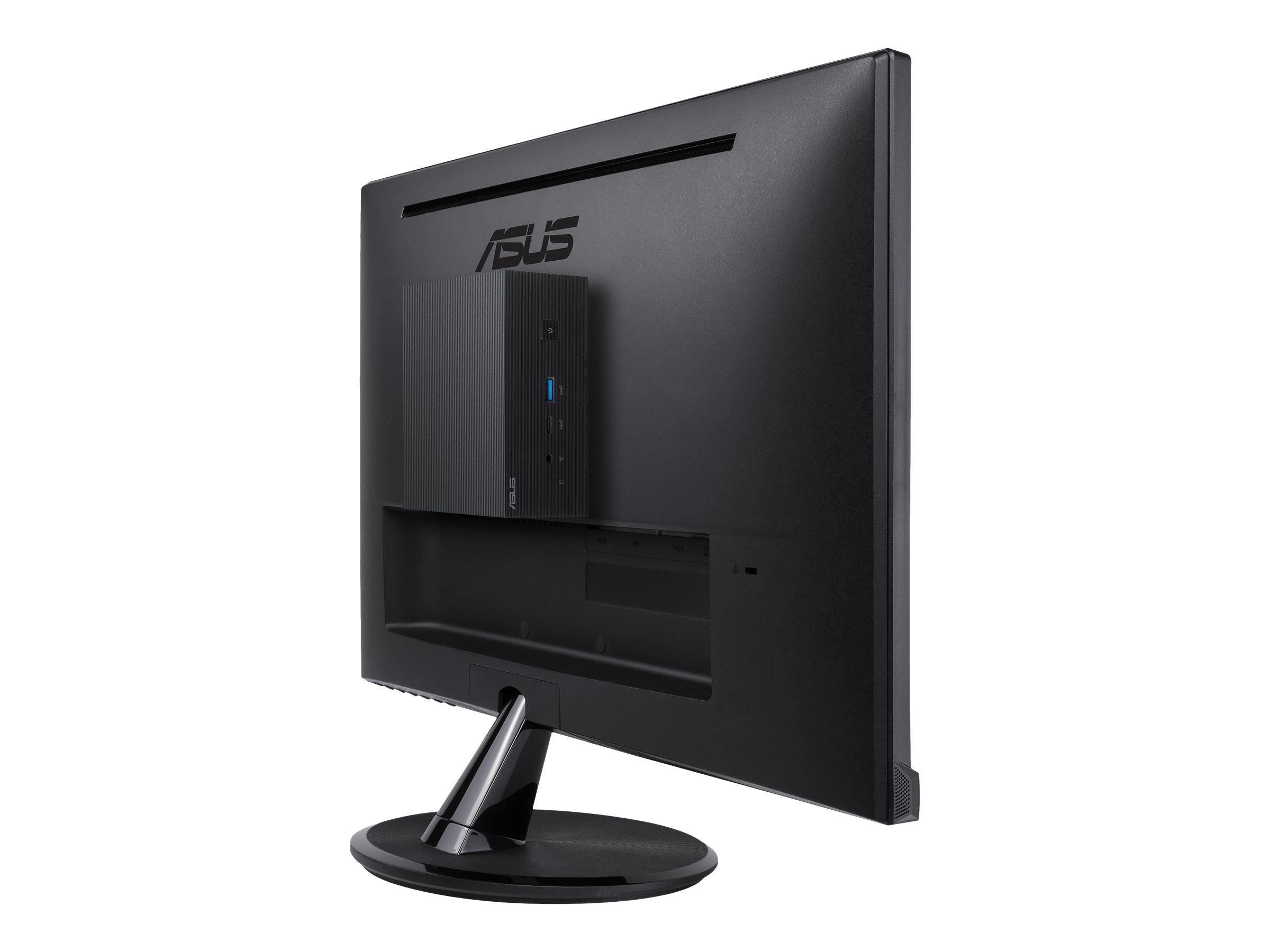

VESA Mounting InterfaceYes
Monitor
Monitor TypeNone.
Networking
Compliant StandardsWi-Fi CERTIFIED 6
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Ethernet ControllerIntel I225-V
FeaturesDual stream (2x2)
Wireless LAN SupportedYes
Operating System / Software
OS ProvidedNo operating system
Optical Storage
TypeNo optical drive
Power
Device TypePower adapter
Processor / Chipset
Clock Speed3.3 GHz
CPUIntel Core i7 (11th Gen) 11370H
CPU Qty1
Max CPU Qty1
Max Turbo Speed4.8 GHz
Number of CoresQuad-Core
RAM
Form FactorSO-DIMM 260-pin
Installed Size0 GB / 64 GB (max)
Slots2 (total) / 2 (empty)
TechnologyDDR4 SDRAM
