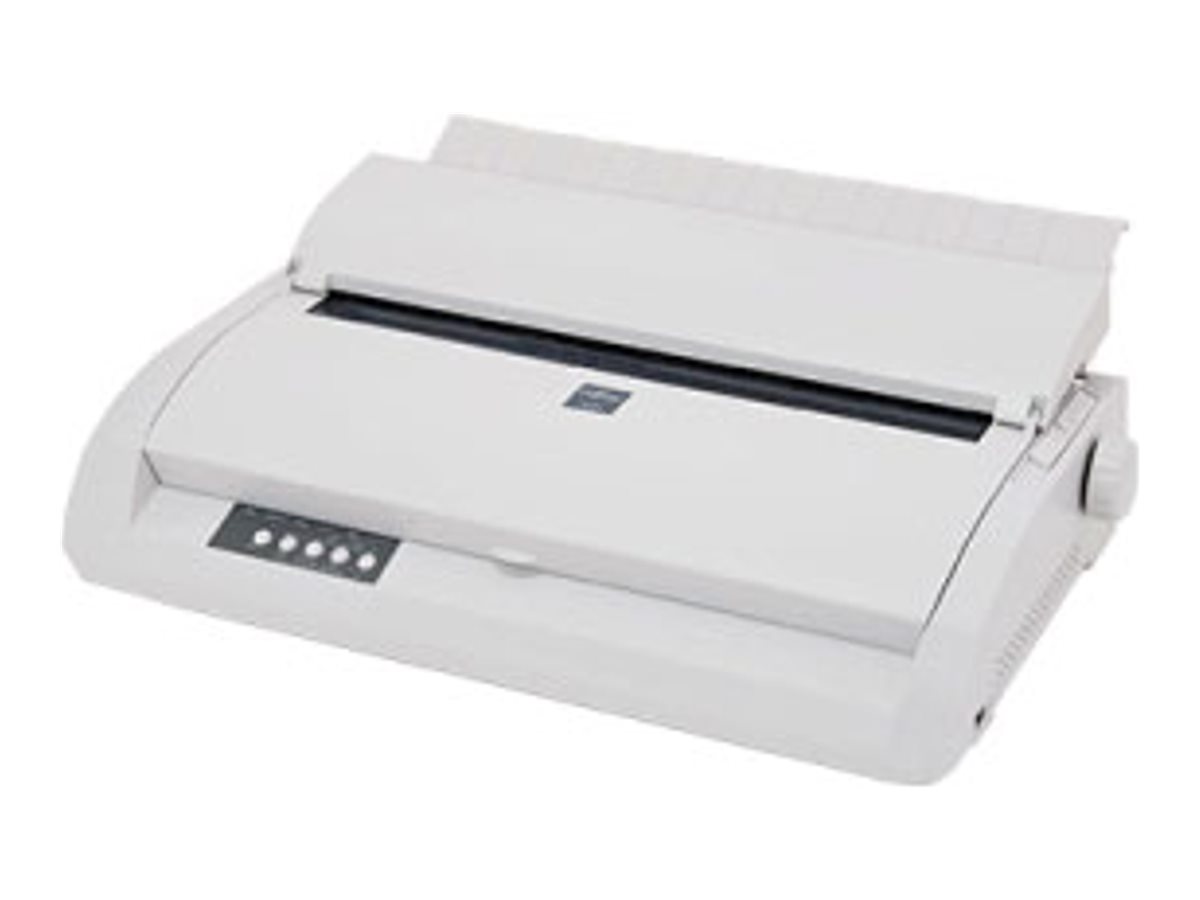

FUJITSU DL3850 -PARALLEL+USB, 136-COLUMN


MSRP$861.75
$719.00
FUJITSU DL3850 -PARALLEL+USB, 136-COLUMN

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
FUJITSU DL3850 -PARALLEL+USB, 136-COLUMN
  Additional Details
Price: $719.00
MSRP: $861.75
Mfr Part #: KA02014-B103
SHI Part #: 44582157
Category: Dot matrix printers
UNSPSC: 43212102
Manufacturer: Printronix
Product Type: Hardware
General Information
CategoryDot matrix printers
DescriptionFUJITSU DL3850 -PARALLEL+USB, 136-COLUMN
ManufacturerPrintronix
MSRP$861.75
UNSPSC43212102
Main Specifications
ABC CodeA
Height9.70
Item StatusA
Length17.50
One Source FlagNNY
Serialized FlagY
SKU Created Date220311
UPC850002653038
Width27.20
Dimensions & Weight
Depth33 cm
Height12 cm
Weight9 kg
Width57 cm
Environmental Parameters
Humidity Range Operating30 - 80%
Max Operating Temperature38 °C
Min Operating Temperature5 °C
Sound Emission (Operating)49 dBA
Environmental Standards
ENERGY STARYes
Expansion / Connectivity
Connections
  • 1 x parallel - 36 pin Centronics
  • 1 x USB - 4 pin USB Type B
General
Printer TypeWorkgroup printer - dot-matrix - 24 pin - monochrome
Media Handling
Max Media SizeFanfold (42 cm)
Max Media Size (Custom)420 mm x 420 mm
Max Sheets in Multi-Part Form5
Media Feeders1 x automatic - fanfold (26.7 cm)
Media Sizes420 x 420 mm, fanfold (42 cm)
Media Thickness RangeUp to 0.35 mm
Media TypePlain paper, continuous forms, fanfold paper
Miscellaneous
Consumables Included1 x ribbon (black) - up to 5 million characters
MTBF20,000 hour(s)
Power
Frequency Required50/60 Hz
Power Consumption Operational70 Watt
Power Consumption Stand by / Sleep28 Watt
Power DevicePower supply - internal
Voltage RequiredAC 120 V
Printer
BarcodesMatrix 2 of 5, Industrial 2 of 5, EAN/JAN-8, EAN/JAN-13, UPC-A, Codabar, Code 128, Code 3 of 9, Interleaved 2 of 5, UPC-A/EAN-13 with Extended Coupon Code
Connectivity TechnologyWired
Fonts Included
  • 9 x bitmapped
  • 9 x outline
  • 10 x barcode
InterfaceParallel, USB
Language SimulationEPSON ESC/P 2, Fujitsu DPL24C Plus, IBM ProPrinter XL24e
Max Resolution (B&W)360 dpi
Print Speed
  • Up to 537 char/sec - fast draft - 12 cpi
  • Up to 448 char/sec - fast draft - 10 cpi
  • Up to 432 char/sec - draft - 12 cpi
  • Up to 360 char/sec - draft - 10 cpi
  • Up to 135 char/sec - letter - 12 cpi
  • Up to 113 char/sec - letter - 10 cpi
  • Up to 225 char/sec - 10 cpi
  • Up to 270 char/sec - 12 cpi
RAM
RAM Installed (Max)128 KB
