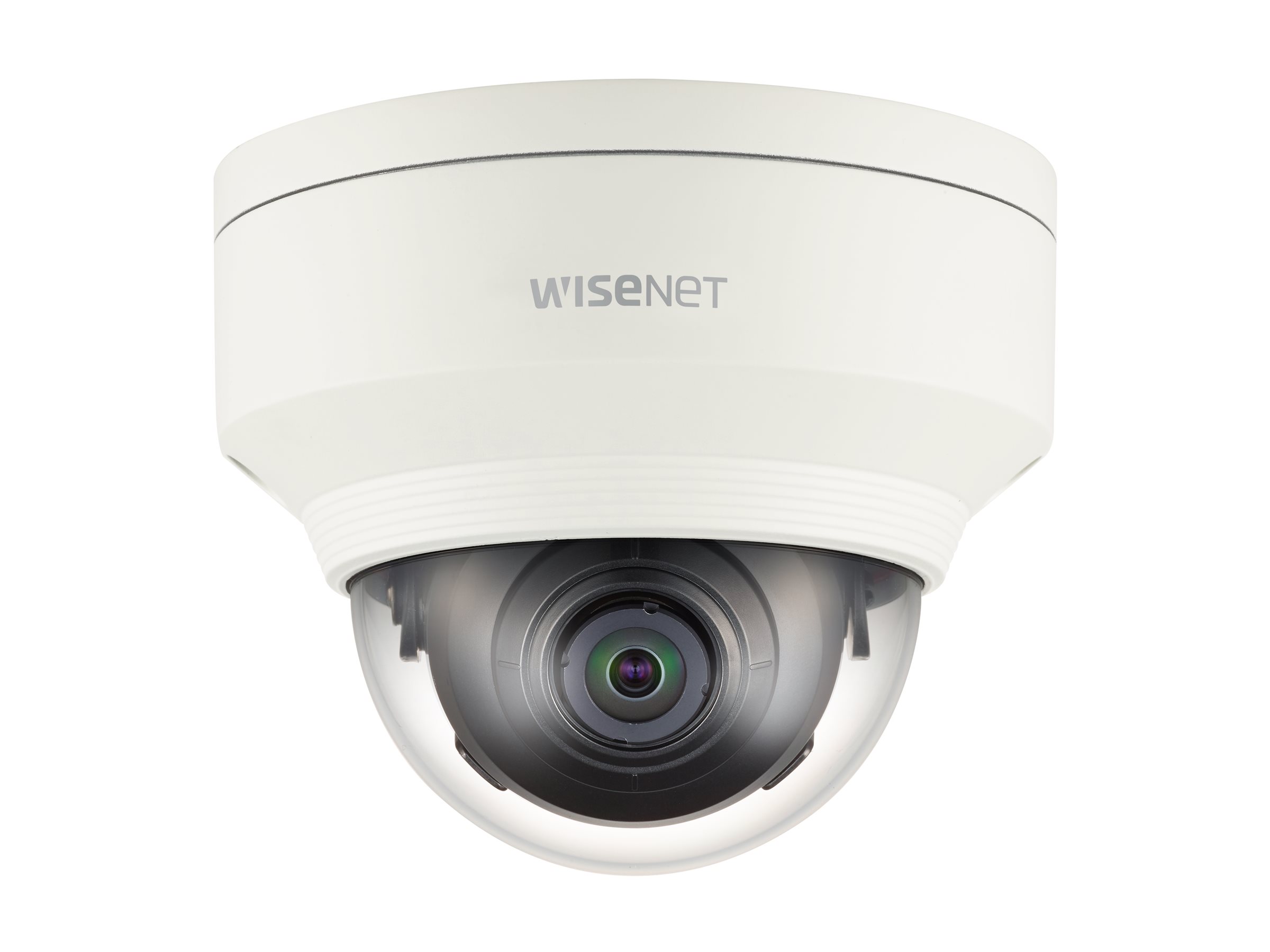

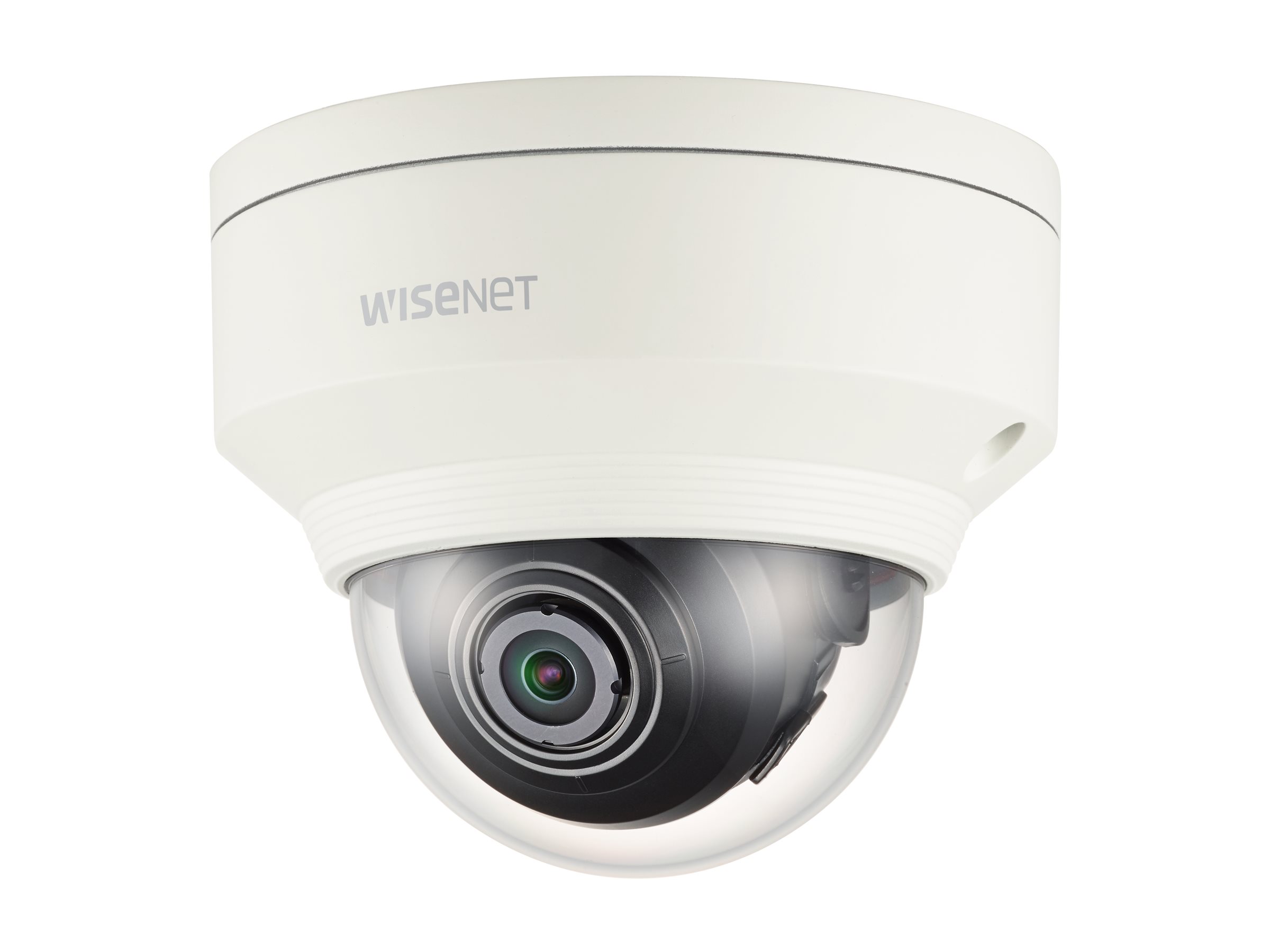

Hanwha Vision WiseNet X XNV-6010
MSRP$650.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hanwha Vision WiseNet X XNV-6010
- Network surveillance camera
- dome
- outdoor
- dustproof / waterproof / vandal-proof
- color (Day&Night)
- 2.2 MP
- 1920 x 1080
- fixed focal
- audio
- composite
- LAN 10/100
- MJPEG, H.264, H.265, MPEG-4 AVC
- DC 12 V / PoE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $650.00 |
| Mfr Part #: | XNV-6010 |
| SHI Part #: | 43075599 |
| Category: | Cameras |
| UNSPSC: | 45121500 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Cameras |
| Description | Hanwha Vision WiseNet X XNV-6010 - Network surveillance camera - dome - outdoor - dustproof / waterproof / vandal-proof - color (Day&Night) - 2.2 MP - 1920 x 1080 - fixed focal - audio - composite - LAN 10/100 - MJPEG, H.264, H.265, MPEG-4 AVC - DC 12 V / PoE |
| Manufacturer | HANWHA VISION |
| MSRP | $650.00 |
| UNSPSC | 45121500 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12 cm |
| Dimensions & Weight / Height | 9.75 cm |
| Dimensions & Weight / Weight | 625 g |
| Dimensions & Weight / Width | 12 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265, MPEG-4 AVC |
| Digital Zoom | 24 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, infrared cut filter, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, 2D Digital Noise Reduction Technology, people counting, Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Directional Motion Detection, fog detection |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - outdoor - dustproof / waterproof / vandal-proof |
| Video Capture | 1920 x 1080 @ 60 fps |
| Video Format | NTSC, PAL |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711 |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 12 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 9.75 cm |
| Weight | 625 g |
| Width | 12 cm |
| Image Sensor | |
| Effective Pixels | 1945 x 1097 |
| Total Pixels | 1945 x 1109 |
| Type | 2.2 MP CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SSM, EAP, PIM-SM |
| Video | Composite video |
| Lens Construction | |
| Focal Length | 2.4 mm |
| Focus Adjustment | Manual |
| Horizontal Field of View (degree) | 139 |
| Lens Iris | F/2.0 |
| Min Focus Distance | 40 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 73 |
| Miscellaneous | |
| Color | Ivory |
| Compliant Standards | IP67, IK10, IP66, IEEE 802.3af |
| Panning | |
| Range (degree) | 0 to 354 |
| Power | |
| Power Device | 6 Watt |
| Power Requirements | DC 12 V / PoE |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
| Tilting | |
| Range (degree) | 0 to 67 |
