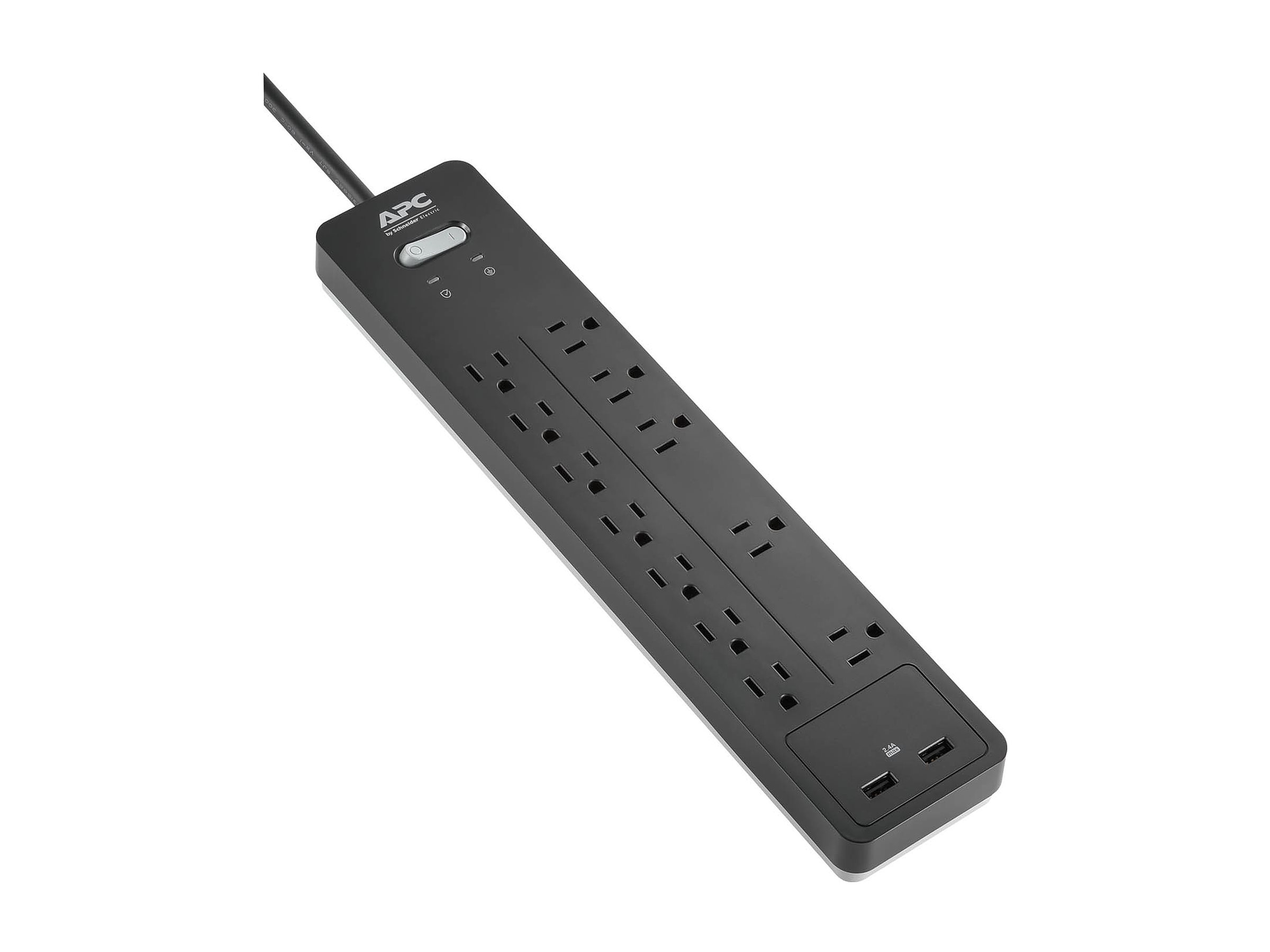

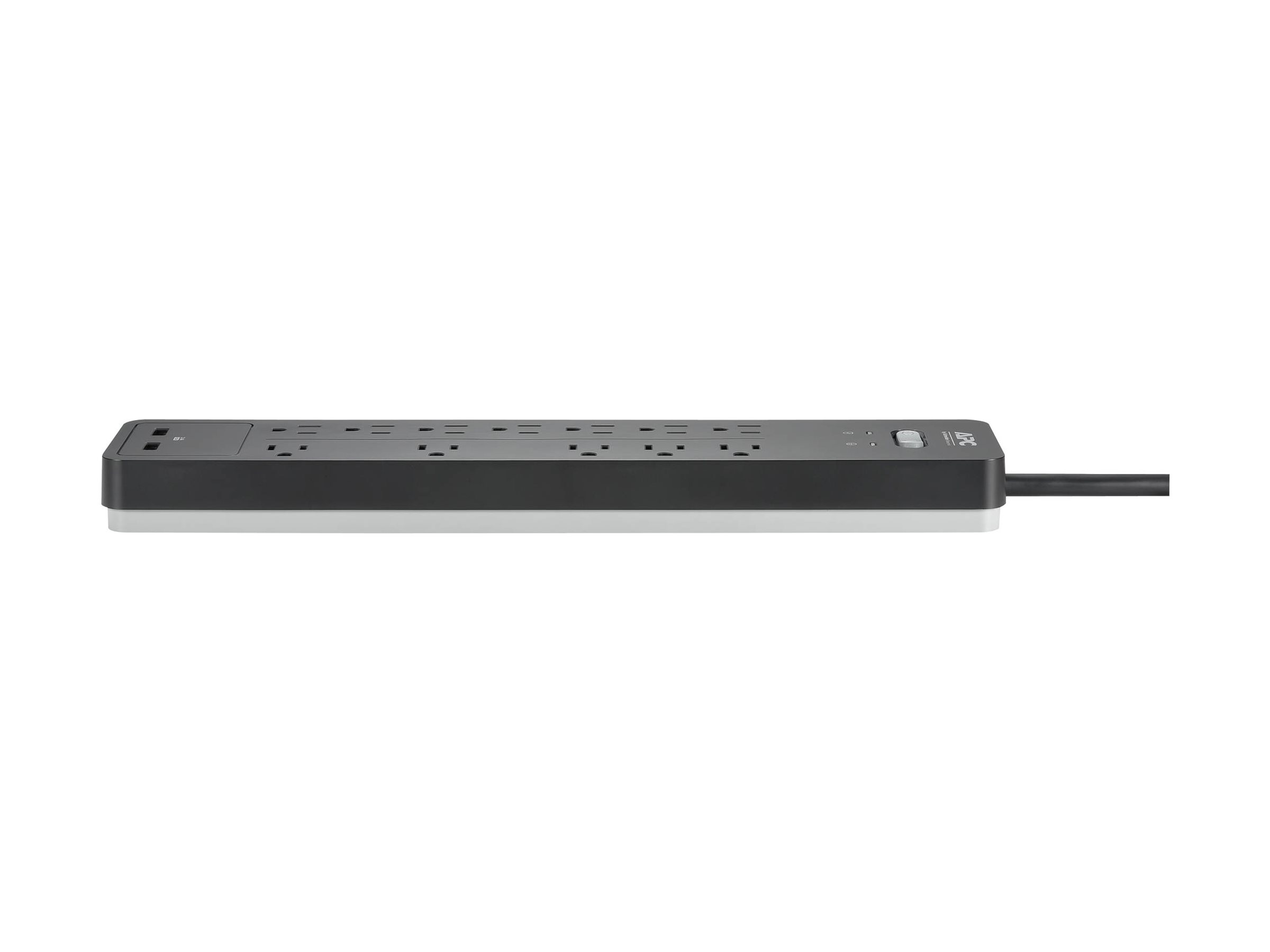

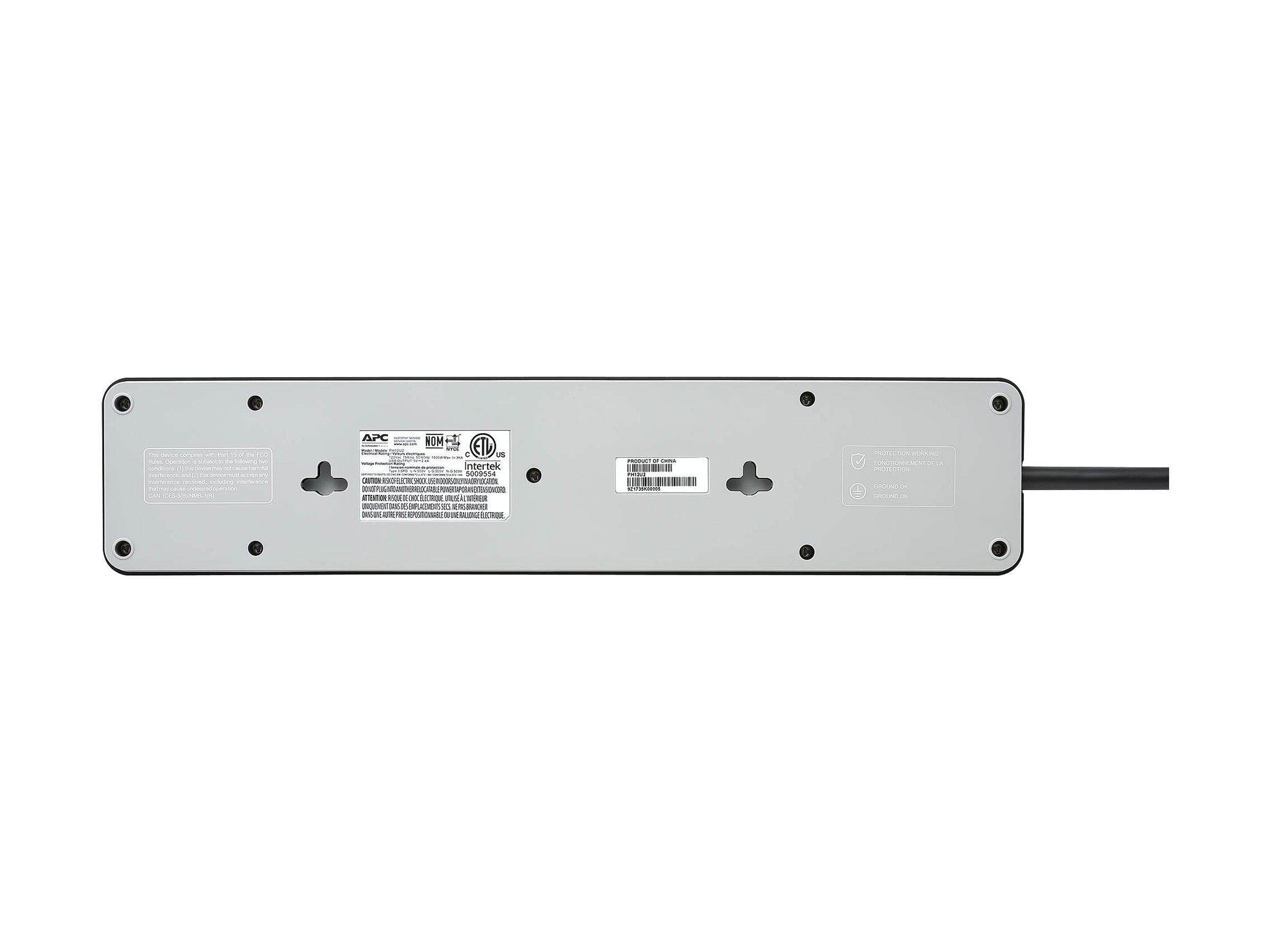

APC Home/Office SurgeArrest PH12U2

APC Home/Office SurgeArrest PH12U2

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Surge protector
  • AC 120 V
  • output connectors: 12
  • 1.83 m
  • black
APC Home/Office SurgeArrest PH12U2
  • Surge protector
  • AC 120 V
  • output connectors: 12
  • 1.83 m
  • black
  Additional Details
Price: $40.00
MSRP: $53.00
Mfr Part #: PH12U2
SHI Part #: 34911433
Category: Surge suppressers
UNSPSC: 39121610
Manufacturer: APC
Product Type: Hardware
Product Line: APC by Schneider Electric
General Information
CategorySurge suppressers
DescriptionAPC Home/Office SurgeArrest PH12U2 - Surge protector - AC 120 V - output connectors: 12 - 1.83 m - black
Main Specifications
Dimensions & Weight / Depth35.7 cm
Dimensions & Weight / Height3 cm
Dimensions & Weight / Weight710 g
Dimensions & Weight / Width7.7 cm
General / SubcategorySurge protection and power conditioning
Header / BrandAPC
Miscellaneous / Product ColorBlack
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Output Connector Qty12
Power Device / Voltage RequiredAC 120 V
Product TypeSurge protector
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth35.7 cm
Height3 cm
Weight710 g
Width7.7 cm
Dimensions & Weight (Shipping)
Shipping Depth38.5 cm
Shipping Height4.8 cm
Shipping Weight840 g
Shipping Width14.5 cm
Environmental Parameters
Humidity Range Operating0 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Cord Length1.83 m
Device TypeSurge protector - external
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Cables IncludedPower cable - integrated - 1.83 m
Compliant StandardsFCC Part 15 B, MET
Equipment Protection Value150000 US Dollars
FeaturesOn/off switch, LED indicator, right angled, 180° cable rotation, noise filtering, overload protection, thermal protection, Metal Oxide Varistor Technology (MOV), built-in 2-port USB charger, lightning protection
Power Device
Circuit ProtectionCircuit breaker
Frequency Required50/60 Hz
Input Connectors1 x power NEMA 5-15P
Input VoltageAC 120 V
Max Electric Current15 A
Power Output Connectors Details
  • 12 x power NEMA 5-15 - 120 V
  • 2 x 4 pin USB Type A - 5 V
Surge Energy Rating2160 Joules
Surge Response Time1 ns
Surge SuppressionYes
