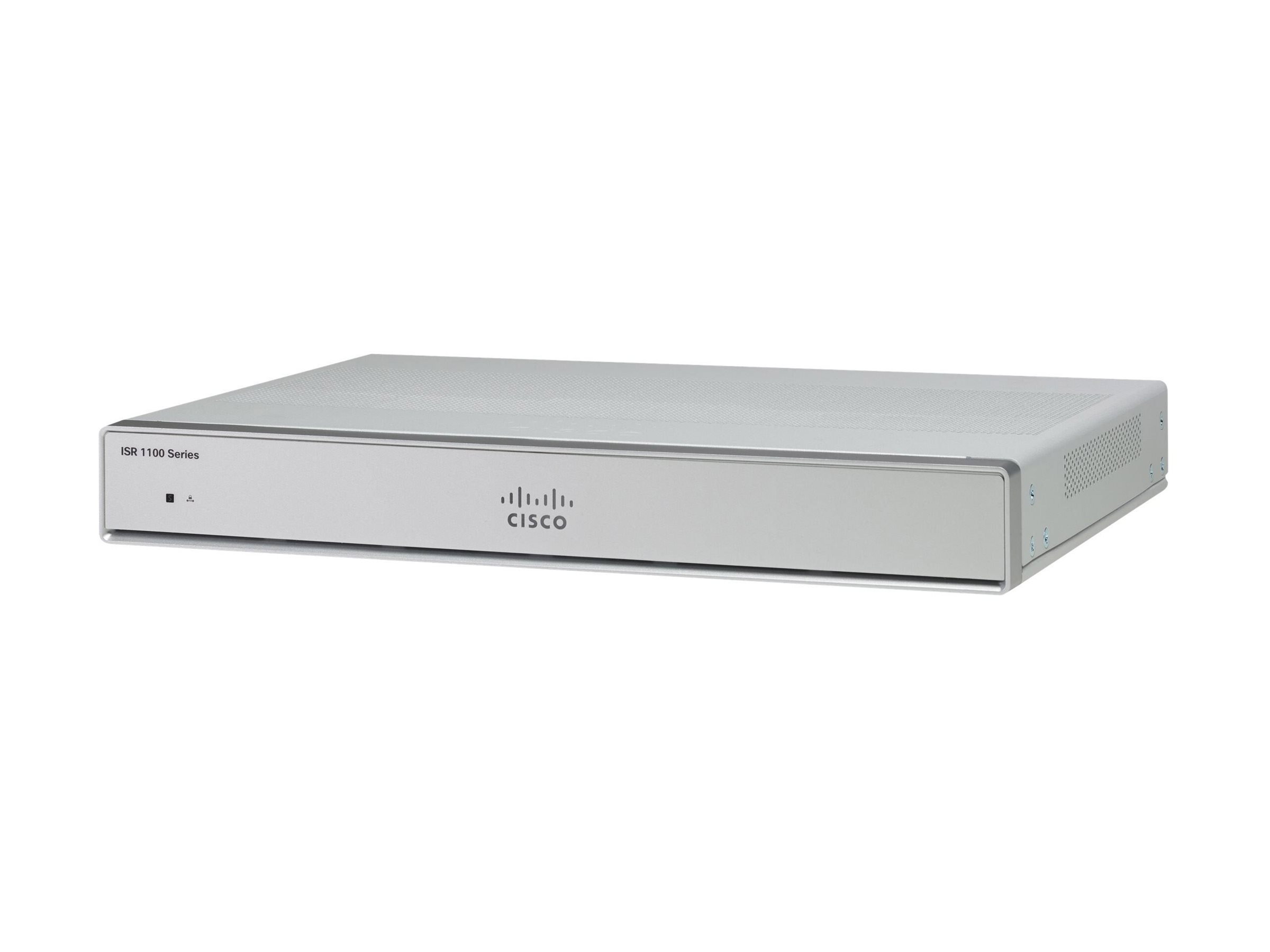

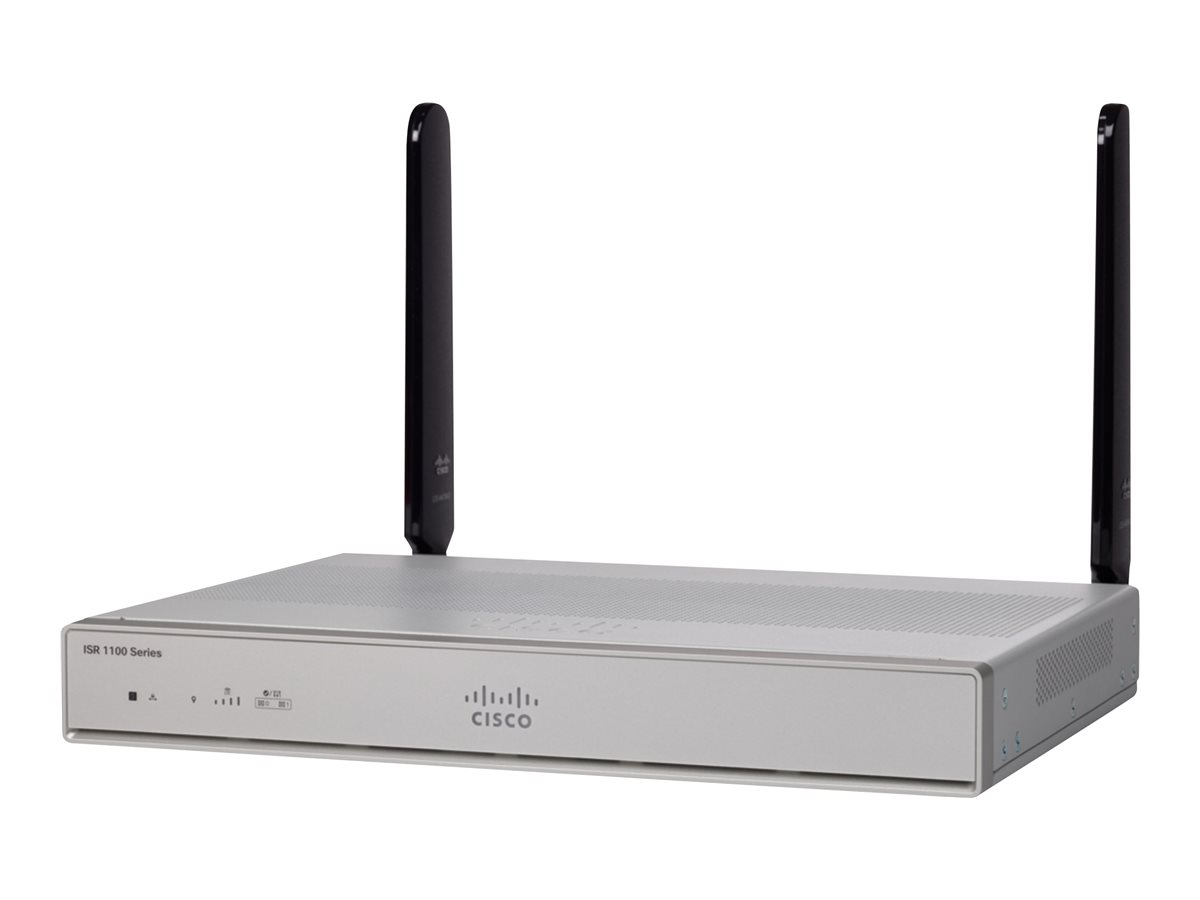

Cisco Integrated Services Router 1111

Cisco Integrated Services Router 1111 - router - WWAN - desktop

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Router
  • WWAN
  • 4-port switch
  • GigE, HDLC, Frame Relay, PPP, MLPPP, MLFR
  • WAN ports: 3
Cisco Integrated Services Router 1111
  • Router
  • WWAN
  • 4-port switch
  • GigE, HDLC, Frame Relay, PPP, MLPPP, MLFR
  • WAN ports: 3
  Additional Details
Price: $1,377.00
MSRP: $2,205.98
Mfr Part #: C1111-4PLTEEA
SHI Part #: 34491291
Category: Routers
UNSPSC: 43222609
Manufacturer: Cisco Systems
Product Type: Hardware

Audio/Video Cables

Eco friendly green option. No power cabl
MSRP $0.02 Login for Price
Cisco - power cable - IEC 60320 C13 to GB16C - 2.3 m
  • 2.3 m
  • Taiwan
  • for P/N: HX240C-M6L, HXAF220C-M6SN, HXAF240C-M6SN, HXAF-E-220M6S, HX-C240-M6SX, HX-E-220M6S
MSRP $100.50 Login for Price
Login for Price

File and Data Security

Cisco FW Switching Load for 7455 AT&T and T-Mobile - license - 1 license
  • License
  • for P/N: C1111-4PLTEEA-DNA, C1111-8PLTEEA-DNA, C1112-8PLTEEA, C1112-8PLTEEAWE, C1113-8PLTEEA
Login for Price
Cisco Virtual Office Configuration - license - 1 license
  • License
MSRP $402.00 Login for Price
Cisco FW Switching Load for 7455 Canada - Bell - license - 1 license
  • Bell
  • License
Login for Price
General Information
DescriptionCisco Integrated Services Router 1111 - Router - WWAN - 4-port switch - GigE, HDLC, Frame Relay, PPP, MLPPP, MLFR - WAN ports: 3
ManufacturerCisco Systems
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight2.59 kg
Dimensions & Weight / Width32.3 cm
Header / BrandCisco
Header / Country KitsEurope;North America;
Miscellaneous / Product ColorWhite
Networking / Connectivity TechnologyWired
Networking / Data Link ProtocolEthernet;Fast Ethernet;Frame Relay;Gigabit Ethernet;HDLC;MLFR;MLPPP;PPP;
Networking / Form FactorDesktop
Networking / TypeRouter
OS Provided / TypeCisco IOS XE Universal
Packaged Quantity1
RAM / Installed Size4 GB
Cellular ProtocolUMTS, HSPA+, DC-HSPA+, LTE Advanced, FDD LTE, TDD LTE, TD-SCDMA 39
Digital Signaling ProtocolADSL2, ADSL2+, VDSL2
Protocols & SpecificationsITU G.992.5, ITU G.992.3 Annex A, ITU G.993.2, ITU-T G.992.1
TypeWireless cellular modem
Dimensions & Weight
Depth24.4 cm
Height4.4 cm
Weight2.59 kg
Width32.3 cm
Environmental Parameters
Humidity Range Operating10 - 85% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x SIM
InterfacesLAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 2 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 ¦ USB 3.0: 1 x console ¦ WAN: 1 x 1000Base-T - SFP (mini-GBIC) ¦ WAN: 1 x 1000Base-T - RJ-45 ¦ WAN: 1 x RJ-45 ¦ Antenna: 1 x GPS connector
Authentication MethodRADIUS
Compliant StandardsIEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.11r, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, EN 300 386, IEEE 802.3at, CAN/CSA-C22.2 No. 60950-1, CB 60950-1, IEEE 802.1Q, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, MLFR
Device TypeRouter - 4-port switch (integrated)
Enclosure TypeDesktop
Encryption AlgorithmTriple DES, SHA, MD5, AES, WPA2, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 384-bit SHA-2, 256-bit SHA, 512-bit SHA, 748-bit AES, ECDSA 256-bit, ECDSA 384-bit
FeaturesDHCP support, power over Ethernet (PoE), load balancing, MPLS support, VLAN support, Syslog support, IPv6 support, Dying Gasp support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), SMS alert, Bidirectional Forwarding Detection (BFD), IPv4 support, NetFlow, Maximum Ratio Combining (MRC), Hot Standby Router Protocol (HSRP) support, Call Home function support, IPFIX, Generic Routing Encapsulation (GRE), automatic Internet Key Exchange, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Application Visibility and Control (AVC), 3G MIB, failover protection, Field Programmable Gate Array, AES encryption, policy based routing, Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Hierarchical Quality of Service (HQoS), Layer 3 VPN (L3VPN) support, Embedded Event Manager (EEM), Multigroup HSRP (MHSRP), Ethernet Virtual Connections (EVC), Cisco IOS IP Service-Level Agreements (IPSLA), Network-Based Application Recognition (NBAR), Multichannel-Interface-Processor (MIP), dual SIM support
Flash Memory4 GB
Network / Transport ProtocolIPSec, PPPoE, DNS, L2TPv3
PerformanceCrypto performance: 150 Mbps
Remote Management ProtocolSNMP, RMON
Routing ProtocolOSPF, RIP, IS-IS, RIP-1, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, PIM-SSM, IPv4-to-IPv6 Multicast, RSVP
Status IndicatorsWAN, 3G, LTE, GPS, link/speed, SIM status, Received Signal Strength Indication (RSSI) bar
Internet of Things (IoT)
Communications TechnologyLTE Cat 6
LocalizationNorth America, Europe
Power Consumption Operational66 Watt
Power DeviceExternal power adapter
Voltage RequiredAC 120/230 V (50 - 60 Hz)
Software / System Requirements
OS ProvidedCisco IOS XE Universal
