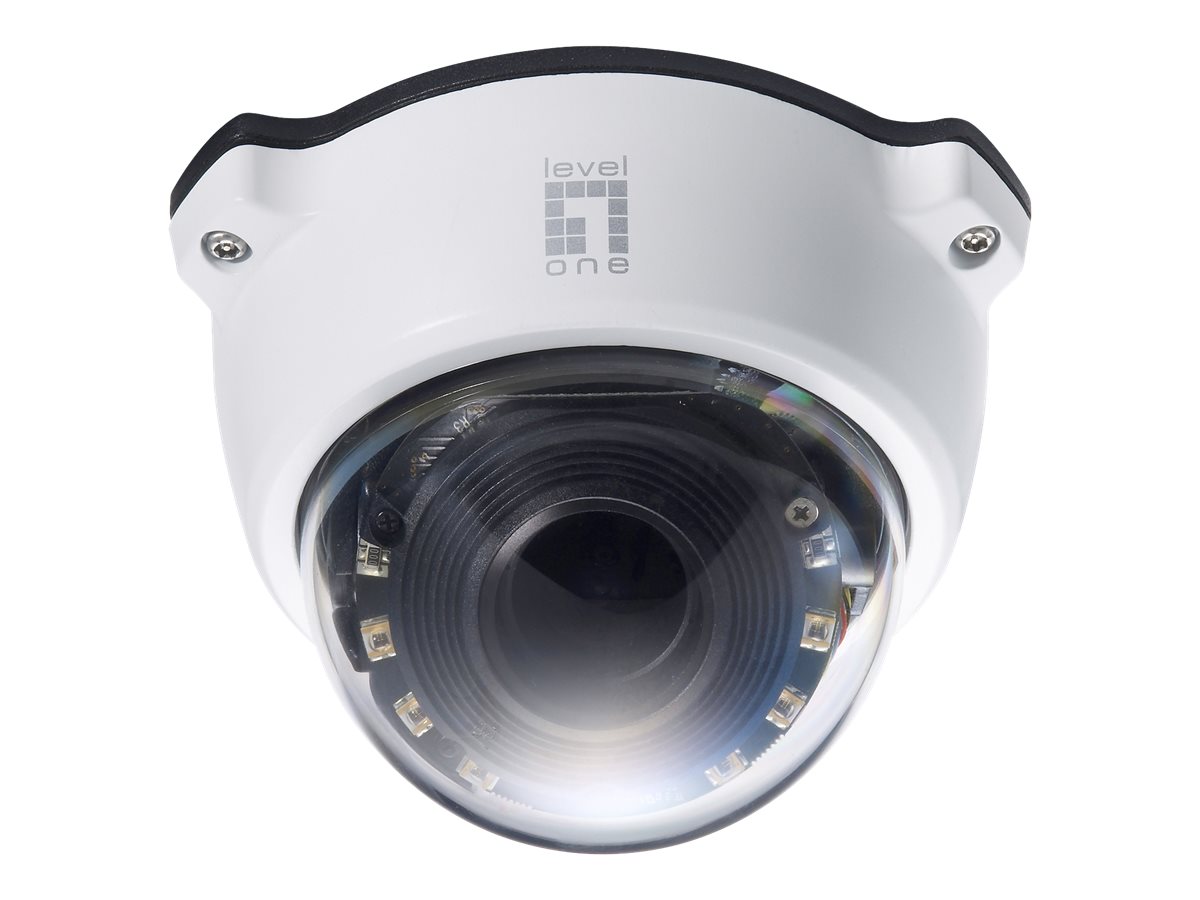

LEVELONE 2MP ZOOM NETWORK CAM
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
Quick Details
|
---|
|
LEVELONE 2MP ZOOM NETWORK CAM
Additional Details | |
---|---|
Price: | |
Mfr Part #: | FCS-4202 |
SHI Part #: | 31612327 |
Category: | Security cameras |
UNSPSC: | 46171610 |
Manufacturer: | CP Technologies |
Product Type: | Hardware |
General Information | |
---|---|
Category | Security cameras |
Description | LEVELONE 2MP ZOOM NETWORK CAM |
Manufacturer | CP Technologies |
UNSPSC | 46171610 |
Main Specifications | |
C.P.U. | NV-CAM |
Dimensions & Weight / Weight | 001.84 |
Height | 003.10 |
Length | 008.10 |
UPC | 0846359003824 |
Width | 006.10 |
Camera | |
Digital Video Format | MPEG-4, MJPEG, H.264 |
Digital Zoom | 4 |
Exposure Range | 1/30 sec - 1/1000000 sec |
Features | Date/time stamp, sharpness control, white balance, saturation control, brightness control, contrast control, image flip, image mirror, Wide Dynamic Range (WDR), ONVIF support, 3D Noise Reduction Technology, Motion Detection Technology, infrared cut filter, notification picture to FTP, reset button, auto gain control, auto white balance |
Infrared Distance | 20 m |
Infrared LEDs | 6 |
Max Digital Video Resolution | 1920 x 1080 |
Minimum Illumination | 1 lux - color - F2.0 |
Motion Detection | Yes |
Type | Color - Day&Night - fixed - outdoor - vandal / waterproof |
Video Capture |
|
Environmental Parameters | |
Max Operating Temperature | 50 °C |
Min Operating Temperature | -5 °C |
Relative Humidity (operating) | 10 - 80% (non-condensing) |
Expansion / Connectivity | |
Ports |
|
Supported Memory Cards | microSD Card, microSDHC Card |
General | |
Audio Support | Yes: two-way audio capability, built-in microphone |
Camera Mount Type | Surface mount, ceiling mount |
Connectivity Technology | Wired |
Depth | 6.3 cm |
Device Type | Network surveillance camera |
Form Factor | Dome |
Height | 9.2 cm |
Weight | 500 g |
Width | 6.3 cm |
Image Sensor | |
Type | 2 MP CMOS 1/2.7" |
Interfaces | |
Network Interface | Ethernet 10Base-T/100Base-TX |
Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, RTSP, HTTPS, UPnP, IPv4, IPv6, PPPoE, Samba |
Lens Construction | |
Focal Length | 3 mm - 9 mm |
Focus Adjustment | Automatic |
Horizontal Field of View (degree) | 39 - 136 |
Lens Iris | F/1.8 auto iris |
Optical Zoom | 3 x |
Type | Motorized zoom |
Miscellaneous | |
Cables Included | 1 x network coupler - external |
Compliant Standards | FCC, RoHS, IP66, IEC 62262 IK08 |
Included Accessories | Mounting kit |
Power | |
Power Device | Power adapter 8 Watt |
Power Requirements | DC 12 V / PoE |
Software / System Requirements | |
OS Required | Microsoft Windows Vista / XP / 7 / 8 |
Software Included | Drivers & Utilities |
