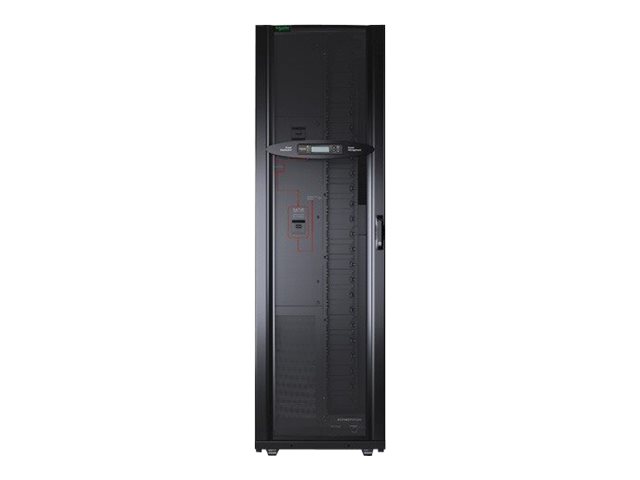

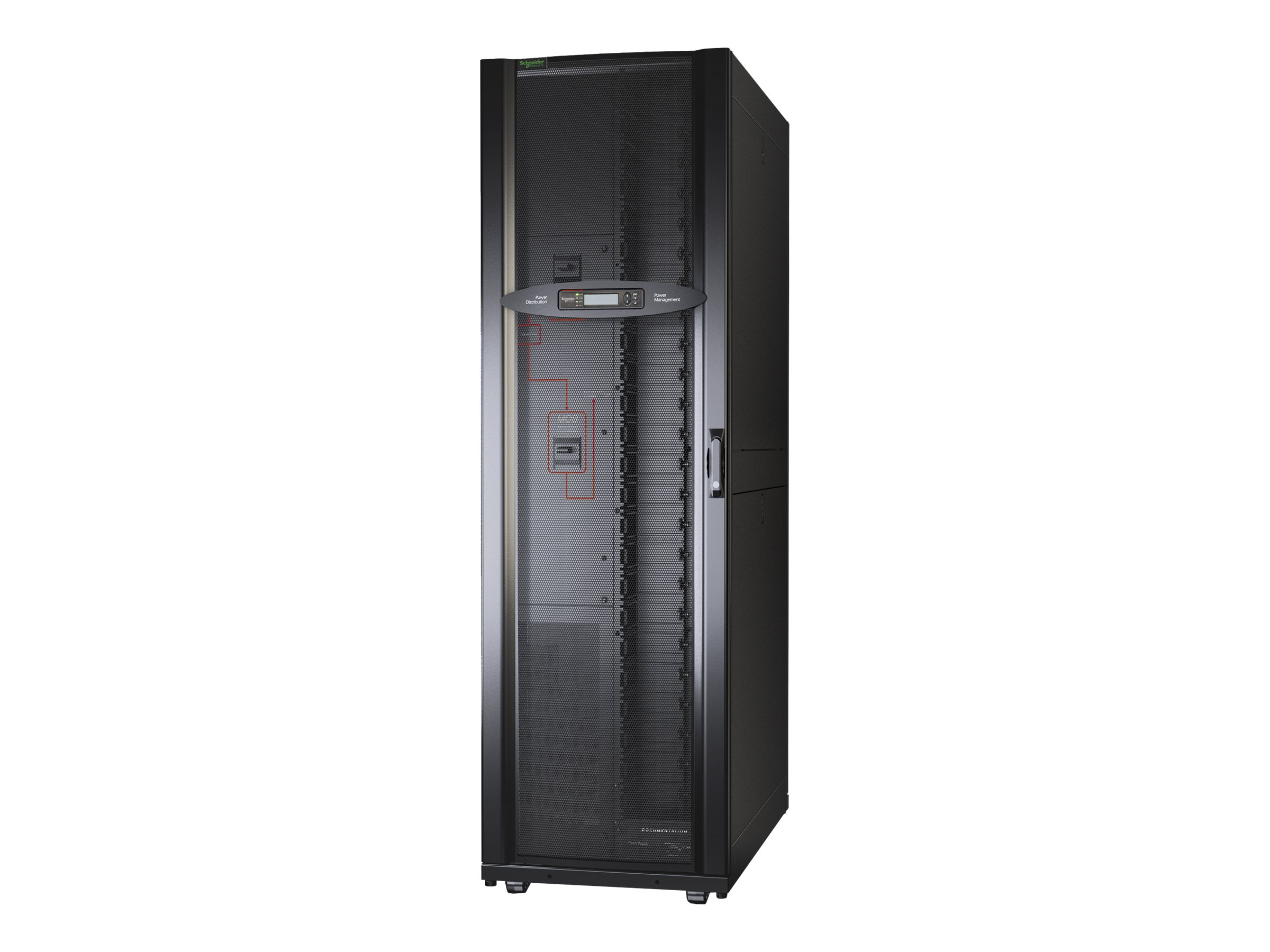

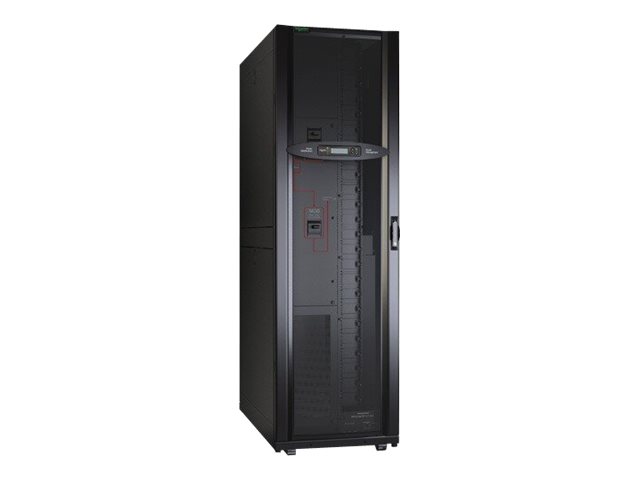

APC Modular Power Distribution Unit with 72 Poles and 2 Subfeed


MSRP$61,790.00
$45,895.00
APC Modular Power Distribution Unit with 72 Poles and 2 Subfeed

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Power distribution unit
  • AC 600 V
  • 144000 VA
  • 3-phase
  • Ethernet
APC Modular Power Distribution Unit with 72 Poles and 2 Subfeed
  • Power distribution unit
  • AC 600 V
  • 144000 VA
  • 3-phase
  • Ethernet
  • black
  Additional Details
Price: $45,895.00
MSRP: $61,790.00
Mfr Part #: PDPM150L6F
SHI Part #: 26286562
Category: Chassis
UNSPSC: 43201601
Manufacturer: APC by Schneider Electric
Product Type: Hardware

Storage Networking (SAN)

APC Modular Power Distribution Unit with 72 Poles and 1 Subfeed
  • Power distribution cabinet
  • AC 208 V
  • 100 kW
  • 100000 VA
  • 3-phase
  • output connectors: 1
MSRP $24,225.00 $17,536.00
APC Modular Power Distribution Unit with 72 Poles and 1 Subfeed
  • Power distribution cabinet
  • AC 480 V
  • 100 kW
  • 100000 VA
  • 3-phase
  • black
MSRP $46,855.00 $33,918.00
APC Modular Power Distribution Unit with 72 Poles and 1 Subfeed
  • Power distribution cabinet
  • AC 208 V
  • 100 kW
  • 100000 VA
  • 3-phase
  • black
MSRP $47,695.00 $33,850.00
General Information
CategoryChassis
DescriptionAPC Modular Power Distribution Unit with 72 Poles and 2 Subfeed - Power distribution unit - AC 600 V - 144000 VA - 3-phase - Ethernet - black
ManufacturerAPC by Schneider Electric
MSRP$61,790.00
UNSPSC43201601
Main Specifications
Dimensions & Weight / Depth122 cm
Dimensions & Weight / Height200 cm
Dimensions & Weight / Weight881 kg
Dimensions & Weight / Width60 cm
General / SubcategoryCabinets, enclosures and chassis
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management InterfaceEthernet
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Power Capacity (VA)144000 VA
Power Device / Voltage RequiredAC 600 V
Product TypePower distribution unit
Service & Support / Type1-year warranty
Dimensions & Weight
Depth122 cm
Height200 cm
Weight881 kg
Width60 cm
Dimensions & Weight (Shipping)
Shipping Depth122 cm
Shipping Height215 cm
Shipping Weight927 kg
Shipping Width102 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature40 °C
Min Operating Temperature-5 °C
General
ColorBlack
Device TypePower distribution unit - external
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Miscellaneous
Compliant StandardscUL, UL 60950-1
FeaturesBuilt-in isolation transformer
Networking
Remote Management InterfaceEthernet
Remote Management ProtocolSNMP, Telnet
Power Device
Frequency Required60 Hz
Input VoltageAC 600 V
Input Wiring3-phase
Output VoltageAC 208 V
Power Capacity144000 VA
