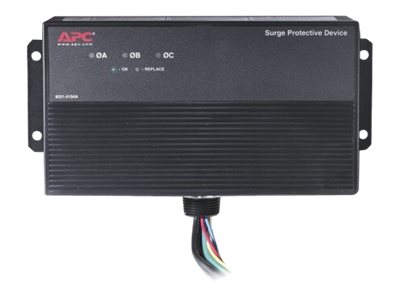

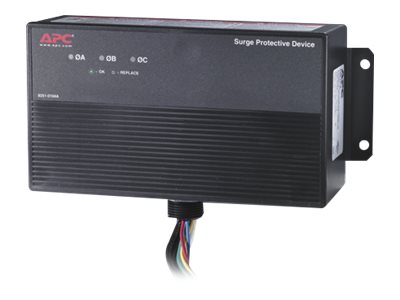

APC SurgeArrest Panelmount, Non-modular

APC SurgeArrest Panelmount, Non-modular

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Surge suppressor
  • AC 120/230 V
APC SurgeArrest Panelmount, Non-modular
  • Surge suppressor
  • AC 120/230 V
  Additional Details
Price: $385.00
MSRP: $515.00
Mfr Part #: PMP2X-A
SHI Part #: 18519656
Category: Surge suppressers
UNSPSC: 39121610
Manufacturer: APC
Product Type: Hardware
Product Line: APC by Schneider Electric
General Information
CategorySurge suppressers
DescriptionAPC SurgeArrest Panelmount, Non-modular - Surge suppressor - AC 120/230 V
Main Specifications
Dimensions & Weight / Depth7.6 cm
Dimensions & Weight / Height9.5 cm
Dimensions & Weight / Weight3 kg
Dimensions & Weight / Width21.9 cm
General / SubcategorySurge protection and power conditioning
Header / BrandAPC
Miscellaneous / Product ColorBlack
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Voltage RequiredAC 120/230 V
Product TypeSurge protector
Service & Support / Type10-year warranty
Dimensions & Weight
Depth7.6 cm
Height9.5 cm
Weight3 kg
Width21.9 cm
Dimensions & Weight (Shipping)
Shipping Depth13.7 cm
Shipping Height18.9 cm
Shipping Weight3.6 kg
Shipping Width27.3 cm
Environmental Parameters
Max Operating Temperature60 °C
Min Operating Temperature-40 °C
Device TypeSurge protector - external
Manufacturer Warranty
Service & SupportLimited warranty - 10 years
Compliant StandardscUL, UL 1283, UL 1449, NEMA Type 4X
FeaturesAudible alarm, noise filtering, overload protection
Power Device
Circuit ProtectionCircuit breaker
EMI/RFI Noise Filtration30 dB
Frequency Required50/60 Hz
Input Connectors1 x hardwire 3-wire (2PH + G)
Input VoltageAC 120/230 V
Max Spike Current80000 A
Surge Response Time1 ns
Surge SuppressionYes
